Removal And Installation: Notes

NOTE: *: Mounting bolt (One bolt or two bolts)

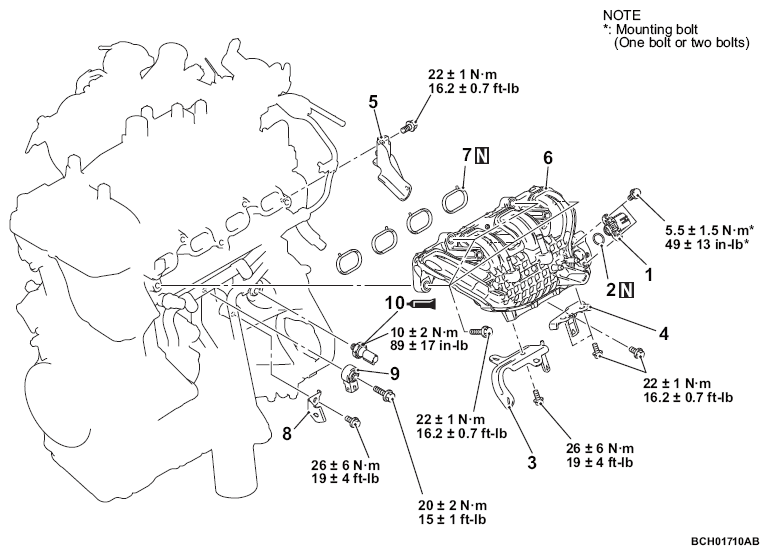

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
	>>D<<	1.	Manifold absolute pressure sensor
		2.	O-ring
		3.	Harness bracket
	>>C<<	4.	Intake manifold stay
		5.	Throttle body stay
	>>C<<	6.	Intake manifold
		7.	Intake manifold gasket
		8.	Harness bracket
	>>B<<	9.	Knock sensor
<<A>>	>>A<<	10.	Engine oil pressure switch

Required Special Tools:
