Removal And Installation: Notes

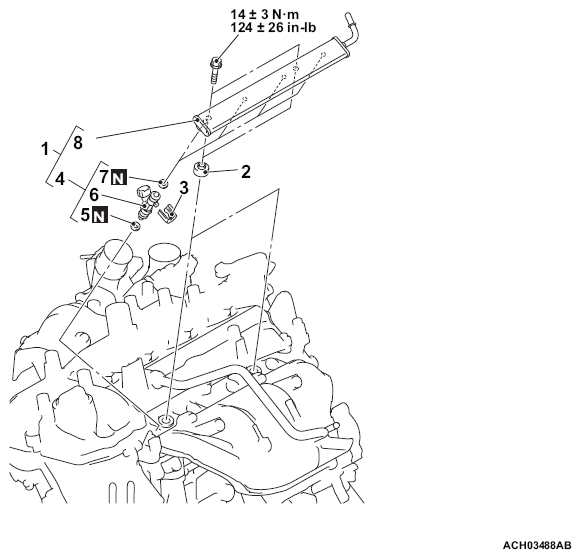

Fig 1: Removing/Installing Injector Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
<<A>>	>>E<<	1.	Fuel fuel rail and fuel injector assembly
		2.	Fuel fuel rail insulator
	>>D<<	3.	Fuel injector support
	>>C<<	4.	Fuel injector assembly
	>>B<<	5.	O-ring
		6.	Fuel injector
	>>A<<	7.	O-ring
		8.	Fuel fuel rail

Required Special Tools:
