Removal And Installation: Notes

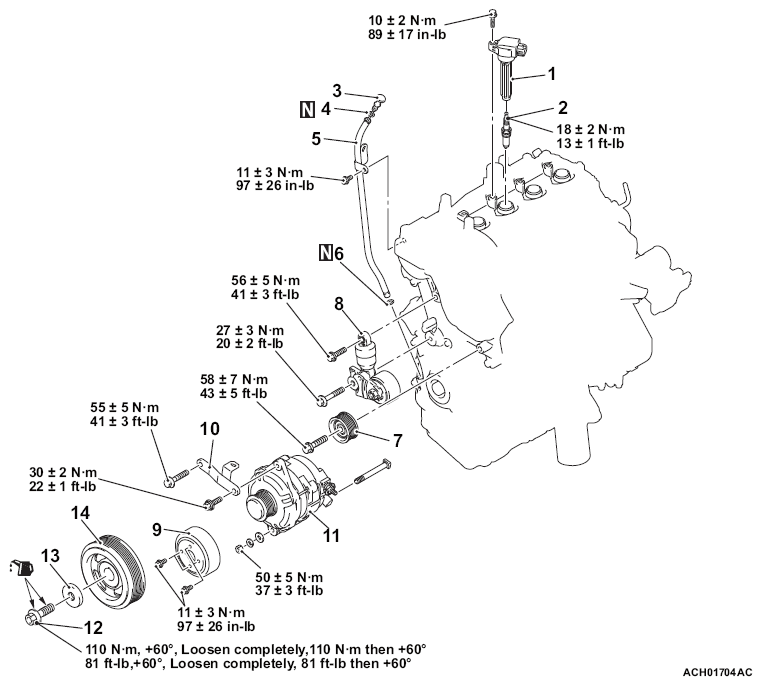

Fig 1: Removing/Installing Generator And Ignition System Components Location With Torque Specification
| Removal steps | |||
|---|---|---|---|
| 1. | Ignition coil | ||
| <<A>> | >>B<< | 2. | Sparkplug |
| 3. | Oil dipstick | ||
| 4. | O-ring | ||
| 5. | Oil dipstick guide | ||
| 6. | O-ring | ||
| 7. | Idler pulley | ||
| 8. | Auto tensioner | ||
| 9. | Water pump pulley | ||
| 10. | Generator bracket | ||
| 11. | Generator | ||
| <<B>> | >>A<< | 12. | Crankshaft pulley center bolt |
| >>A<< | 13. | Crankshaft pulley washer | |
| >>A<< | 14. | Crankshaft pulley | |
Required Special Tools:
- MB991398: Spark plug wrench
- MB991883: Flywheel stopper
