Removal And Installation: Notes

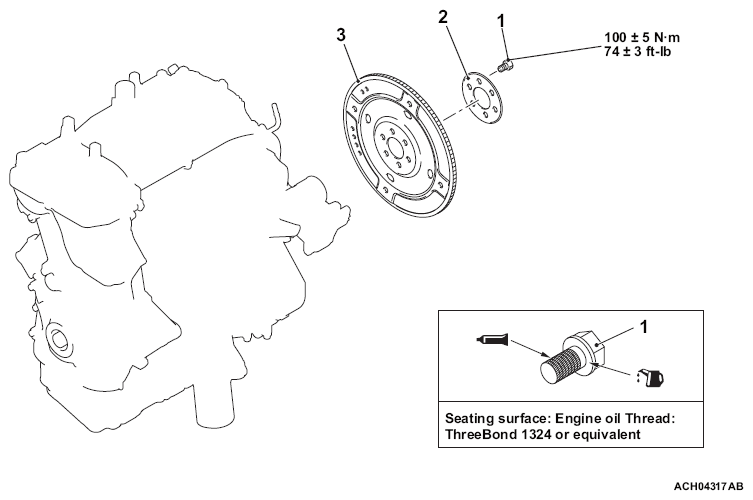

Fig 1: Removing/Installing Drive Plate Components Location With Torque Specification
G16565239Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Removal steps
<<A>> >>A<< 1. Drive plate bolt
  >>A<< 2. Adapter plate
  >>A<< 3. Drive plate

Required Special Tools:
