Removal And Installation: Notes

CAUTION:

Before replacing the valve body, you should make a note of the serial No. which is stamped on the new valve body assembly (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE ).
When the valve body assembly is replaced, carry out the following operations.
Initialization Procedure for CVT Learned Value (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE ).
Learning Procedure (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE ).

Pre-removal operation	Post-installation operation
Engine Room Under Cover Front A, B and Engine Room Side Cover (LH) Removal (Refer to - UNDER COVER ). CVT Assembly Connector Disconnection (Refer to SENSORS ). Transmission Fluid Draining (Refer to TRANSMISSION FLUID CHANGE ).	Engine Room Under Cover Front A, B and Engine Room Side Cover (LH) Installation (Refer to - UNDER COVER ). CVT Assembly Connector Connection (Refer to SENSORS ). Transmission Fluid Refilling (Refer to TRANSMISSION FLUID CHANGE ).

NOTE: *¹ : <UP TO 24 MODEL YEAR>
*² : <FROM 25 MODEL YEAR>

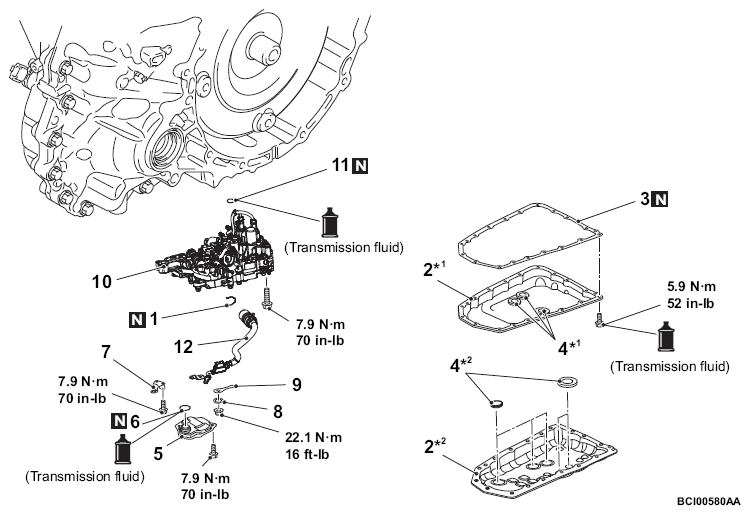

Fig 1: Removing/Installing Oil Pan And Valve Body Assembly Components Location With Torque Specification

G16905753

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
<<A>>		1.	Snap ring
	>>E<<	2.	Oil pan
	>>D<<	3.	Oil pan gasket
		4.	Magnet
	>>C<<	5.	Oil strainer
		6.	O-ring
		7.	Bracket
		8.	Spring washer
		9.	Manual lever
<<B>>	>>B<<	10.	Valve body assembly
	>>A<<	11.	Lip seal
		12.	Valve body harness
