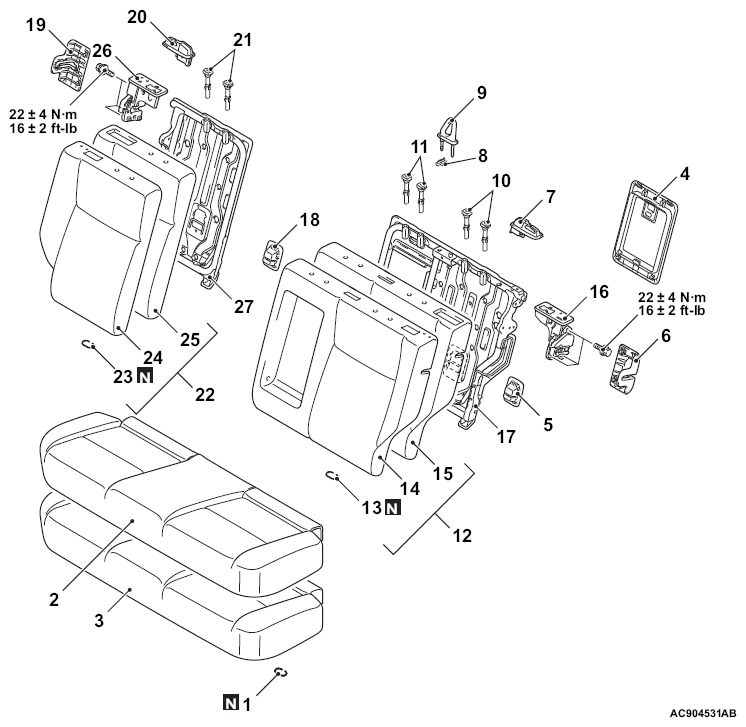

| Disassembly steps |
| |
1. |
Hog ring |
| |
2. |
Rear seat cushion cover |
| |
3. |
Rear seat cushion pad |
| |
4. |
Rear seatback armrest board |
| |
5. |
Rear seat catch cover LH |
| |
6. |
Rear seat latch cover LH |
| |
7. |
Rear seat belt guide LH |
| |
8. |
Rear seat spring |
| |
9. |
Rear seat belt guide center |
| <<A>> |
10. |
Rear seat headrest guide LH |
| |
11. |
Rear seat headrest guide center |
| |
12. |
Rear seatback pad & cover LH |
| |
13. |
Hog ring |
| |
14. |
Rear seatback cover LH |
| |
15. |
Rear seatback pad LH |
| |
16. |
Rear seat lock LH |
| |
17. |
Rear seatback frame LH |
| |
18. |
Rear seat catch cover RH |
| |
19. |
Rear seat latch cover RH |
| |
20. |
Rear seat belt guide RH |
| <<A>> |
21. |
Rear seat headrest guide RH |
| |
22. |
Rear seatback pad & cover RH |
| |
23. |
Hog ring |
| |
24. |
Rear seatback cover RH |
| |
25. |
Rear seatback pad RH |
| |
26. |
Rear seat lock RH |
| |
27. |
Rear seatback frame RH |
