Removal And Installation: Notes
WARNING: This page is about a different car, the 2024 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and Driver's AIR BAG MODULE AND CLOCK SPRING .
- After the steering column switch assembly (integrated with steering wheel sensor) is installed, always calibrate the steering wheel sensor. (Refer to On-vehicle Service, SENSOR CALIBRATION ).

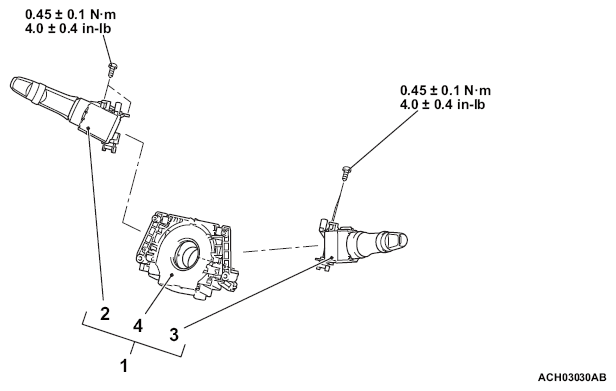

| Steering Column Switch Assembly Removal Steps | ||
|---|---|---|
| • Steering wheel assembly (Refer to STEERING .) | ||
| • Steering column cover lower and steering column cover upper (Refer to INSTRUMENT PANEL ASSEMBLY .) | ||
| • Clock spring (Refer to DRIVER'S AIR BAG MODULE AND CLOCK SPRING .) | ||
| <<A>> | >>A<< | 1. Steering column switch assembly |
| 2. Turn signal light & lighting switch | ||
| 3. Windshield wiper & windshield washer switch | ||
| 4. Steering column switch (Integrated with steering wheel sensor) | ||
| Turn Signal Light & Lighting Switch Removal Steps | ||
| • Steering column cover upper (Refer to INSTRUMENT PANEL ASSEMBLY .) | ||
| 2. Turn signal light & lighting switch Windshield Wiper & Windshield Washer Switch Removal Steps | ||
| • Steering column cover upper (Refer to INSTRUMENT PANEL ASSEMBLY .) | ||
| 3. Windshield wiper & windshield washer switch |
