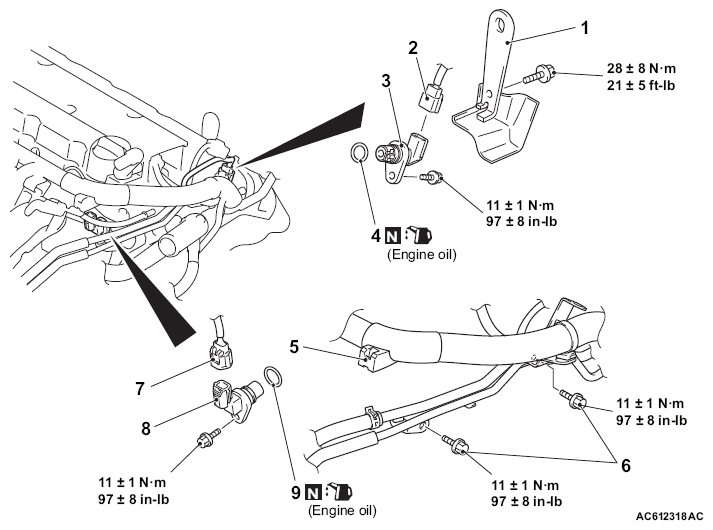

| Exhaust camshaft position sensor removal steps |
| 1. |
Engine hanger |
| 2. |
Exhaust camshaft position sensor connector |
| 3. |
Exhaust camshaft position sensor |
| 4. |
O-ring |
| Intake camshaft position sensor removal steps |
| • |
Air cleaner cover and air intake hose (Refer to
AIR CLEANER
). |
| 5. |
Control harness clamp connection |
| 6. |
Emission vacuum hose and pipe assembly mounting bolt |
| • |
Protector (Refer to
INJECTOR
) <2.0L ENGINE> |
| • |
Protector (Refer to
INJECTOR
) <2.4L ENGINE> |
| 7. |
Intake camshaft position sensor connector |
| 8. |
Intake camshaft position sensor |
| 9. |
O-ring |
