Disassembly And Reassembly: Notes

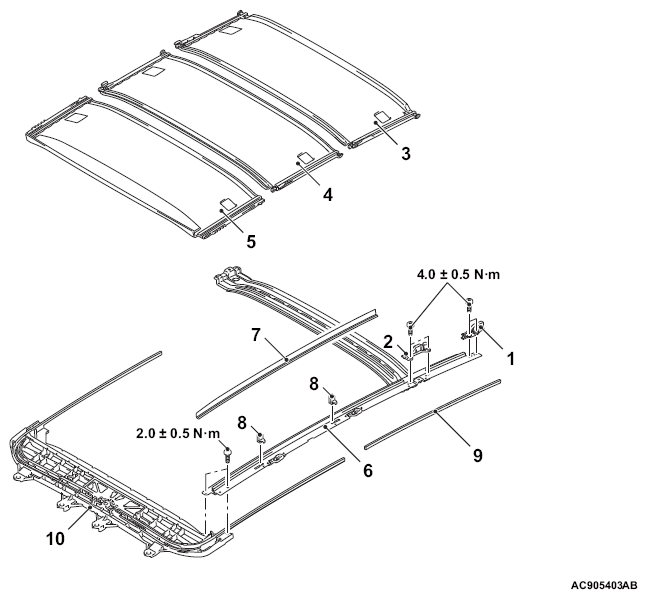

Fig 1: Disassembling/Assembling Sunshade Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Disassembly steps
	1.	Sliding roof sunshade guide (rear)
	2.	Sliding roof sunshade guide (front)
	3.	Sliding roof No. 3 trim sub-assembly
	4.	Sliding roof No. 2 trim sub-assembly
	5.	Sliding roof No. 1 trim sub-assembly
>>A<<	6.	Sliding roof housing frame No. 1
	7.	Sliding roof side garnish
	8.	Sliding roof No. 1 casing clamp
	9.	Sliding roof drive cable
	10.	Sliding roof housing sub-assembly
