Removal And Installation: Notes

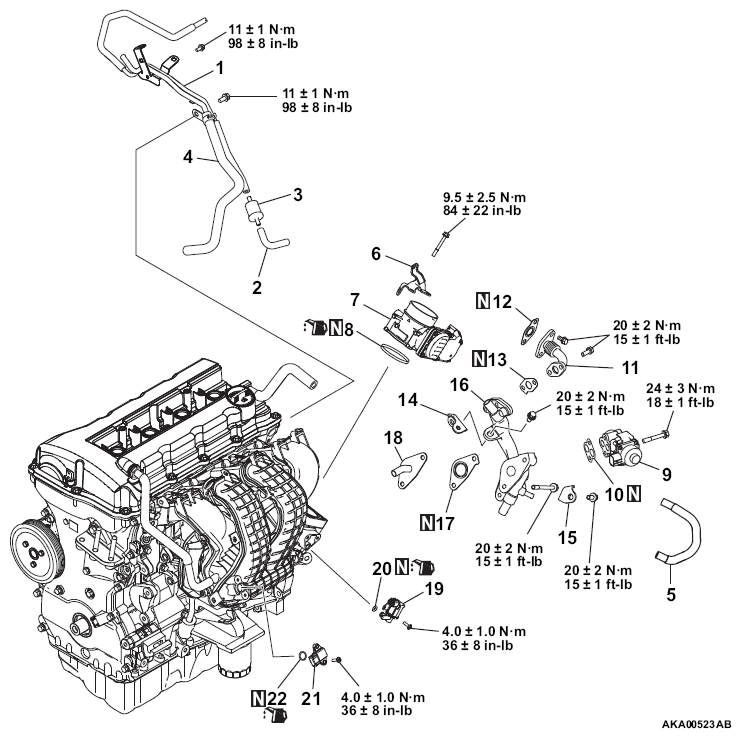

Fig 1: Removing/Installing Throttle Body And EGR System Components Location With Torque Specification
| Removal steps | ||
| 1. | Vacuum pipe assembly | |
| 2. | Purge hose | |
| 3. | Chamber | |
| 4. | Purge hose | |
| 5. | Water hose | |
| 6. | Throttle body stay | |
| 7. | Throttle body | |
| 8. | Throttle body gasket | |
| >>C<< | 9. | EGR valve |
| >>C<< | 10. | EGR valve gasket |
| 11. | EGR pipe | |
| >>B<< | 12. | EGR pipe gasket |
| >>B<< | 13. | EGR valve support gasket |
| 14. | EGR support stay A | |
| 15. | EGR support stay B | |
| 16. | EGR valve support | |
| >>B<< | 17. | EGR inlet pipe gasket |
| 18. | EGR inlet pipe | |
| 19. | Solenoid valve | |
| 20. | O-ring | |
| >>A<< | 21. | Manifold absolute pressure (MAP) sensor |
| 22. | O-ring | |
