Removal And Installation: Notes
Pre-removal and Post-installation Operation
Removal and Installation of Front Pillar Trim, Center Pillar Trim Upper, Quarter Trim Upper (Refer to TRIMS ).

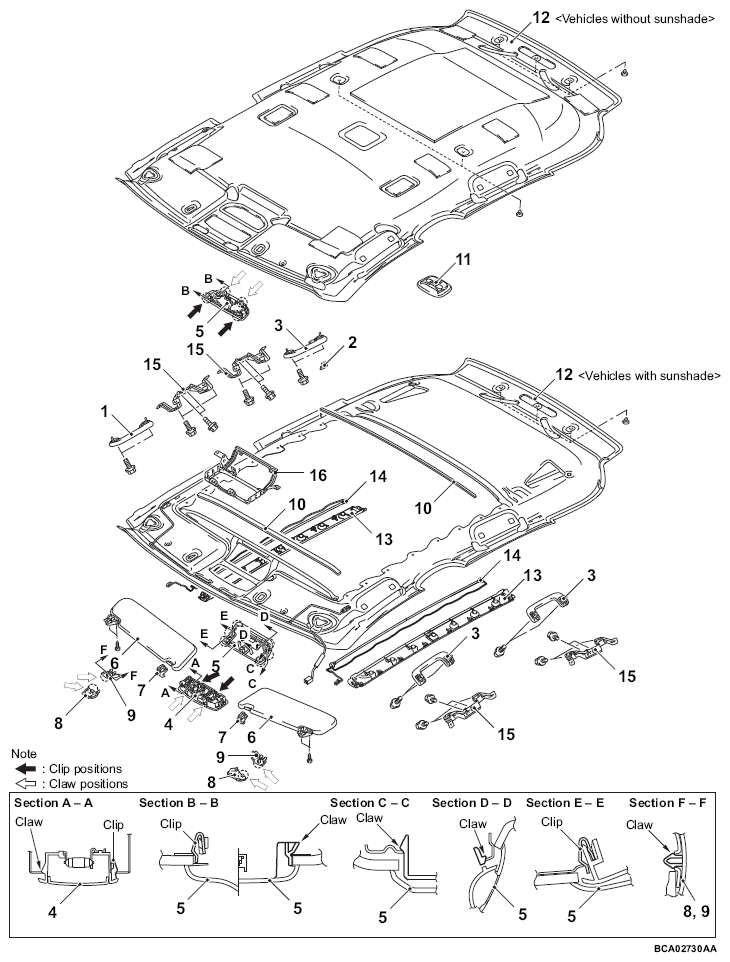

| Removal steps | ||
| 1. | Roof inside assist grip (driver's side) <Vehicles with curtain air bag> | |
| 2. | Assist grip cover | |
| 3. | Roof inside assist grip | |
| 4. | Front dome light assembly (Refer to DOME LIGHT ). | |
| 5. | Security alarm sensor cover | |
| 6. | Sun visor | |
| <<A>> | 7. | Sun visor holder |
| 8. | Headlining garnish (front) <Vehicles with roof window glass> | |
| 9. | Headlining garnish cover (rear) <Vehicles with roof window glass> | |
| 10. | Headlining trim | |
| 11. | Rear dome light assembly (Refer to DOME LIGHT ). | |
| <<B>> | 12. | Headlining |
| 13. | Headlining garnish <Vehicles with roof window glass> | |
| 14. | Spot light assembly | |
| • | Curtain air bag module mounting bolt (Refer to CURTAIN AIR BAG MODULE ). | |
| 15. | Assist grip bracket | |
| 16. | Map light bracket | |
