Electrical Component Locations: Grounding

G13346003Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

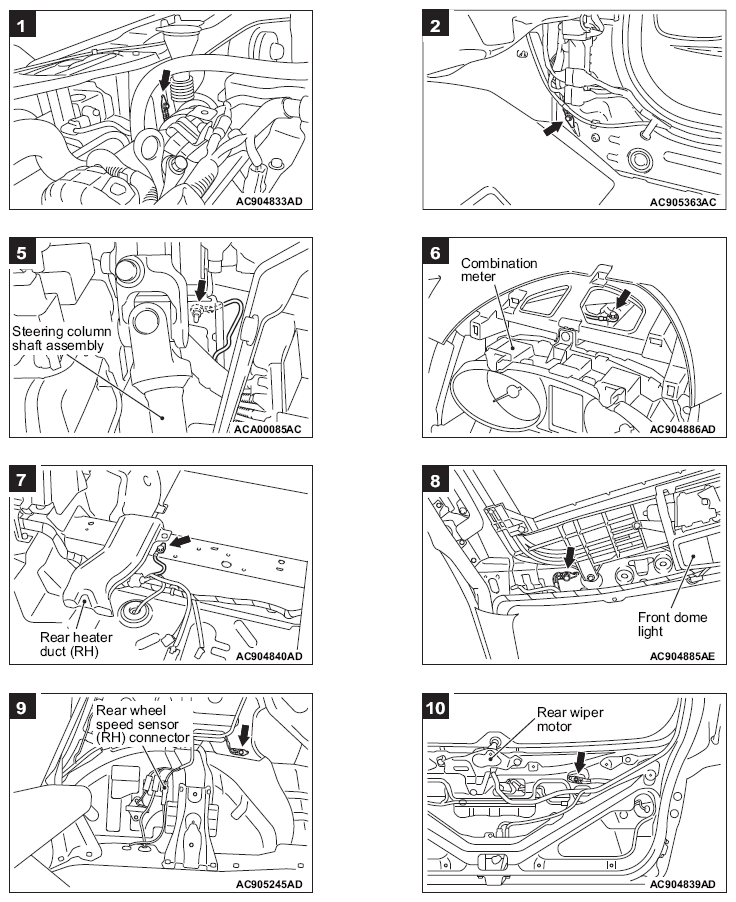

G16597498Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

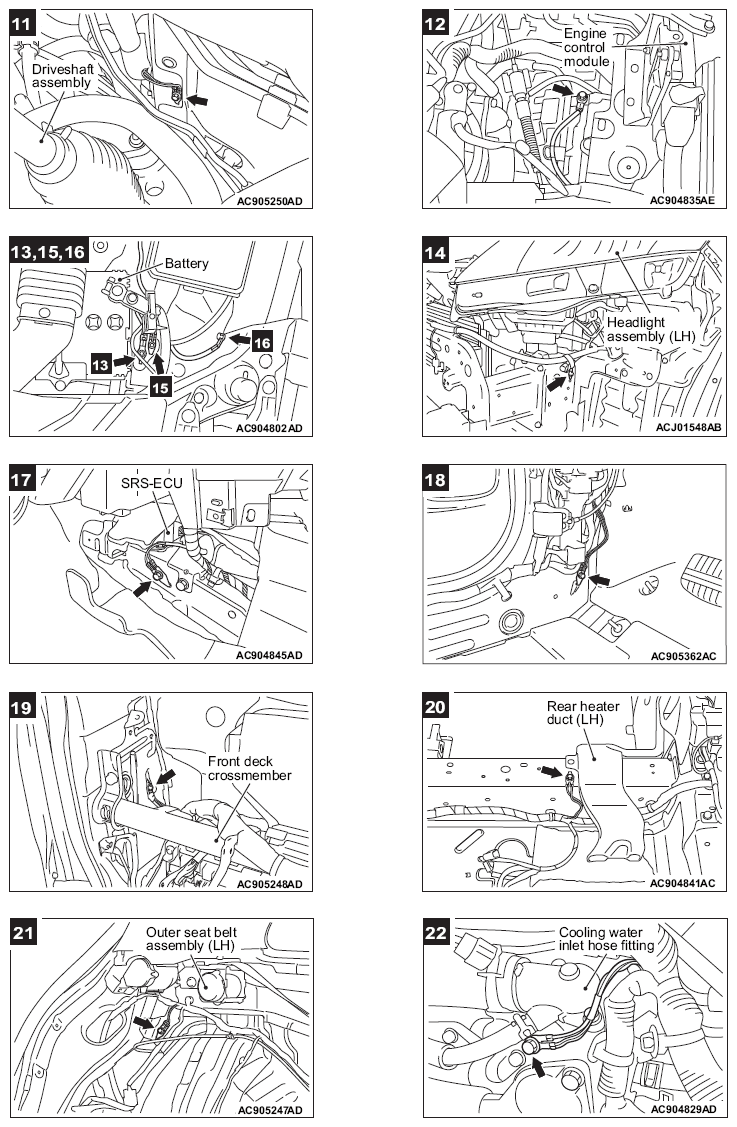

G16597499Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
