Removal And Installation: Notes

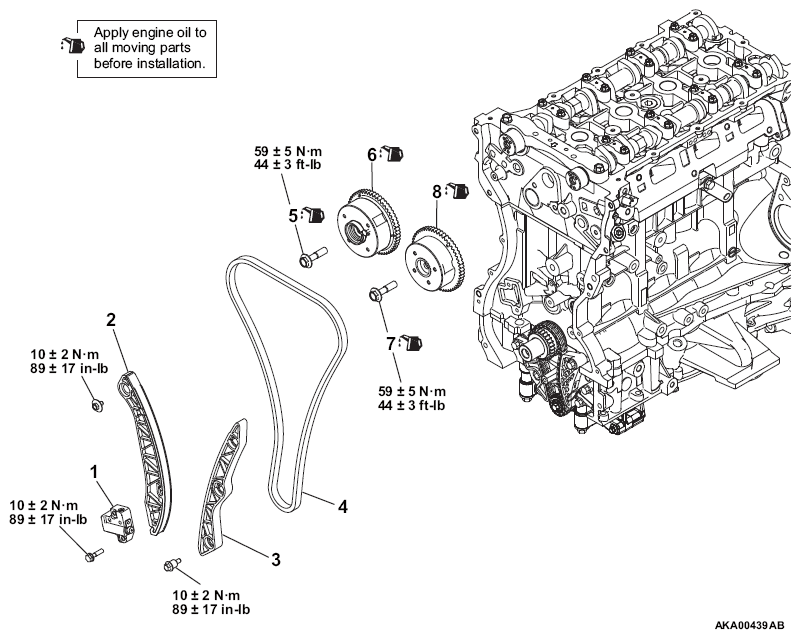

Fig 1: Removing/Installing Timing Chain Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
<<A>>	>>D<<	1.	Timing chain tensioner
		2.	Tensioner lever
		3.	Timing chain guide
	>>C<<	4.	Timing chain
<<B>>	>>B<<	5.	Exhaust V.V.T. sprocket bolt
		6.	Exhaust V.V.T. sprocket assembly
<<C>>	>>A<<	7.	Intake V.V.T. sprocket bolt
		8.	Intake V.V.T. sprocket assembly
