Removal And Installation: Notes

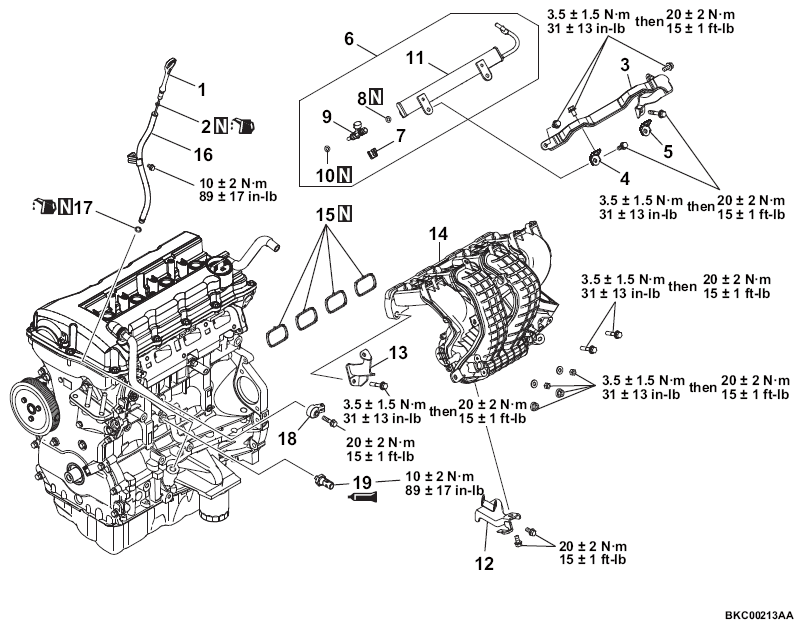

Fig 1: Removing/Installing Intake Manifold And Fuel System Components Location With Torque Specification
| Removal steps | ||
| 1. | Oil dipstick rod | |
| 2. | O-ring | |
| >>F<< | 3. | Injector protector rear |
| >>F<< | 4. | Bracket |
| >>F<< | 5. | Bracket |
| >>F<< | 6. | Fuel rail assembly |
| 7. | Injection support | |
| 8. | O-ring | |
| >>E<< | 9. | Injector |
| >>D<< | 10. | O-ring |
| 11. | Fuel rail | |
| >>C<< | 12. | Intake manifold stay |
| 13. | Injector protector front | |
| >>B<< | 14. | Intake manifold |
| 15. | Intake manifold gasket | |
| 16. | Oil dipstick guide | |
| 17. | O-ring | |
| 18. | Knock sensor | |
| >>A<< | 19. | Engine oil pressure switch |
Required Special Tool :
- MB992106: O-ring Installer
