Removal And Installation: Notes

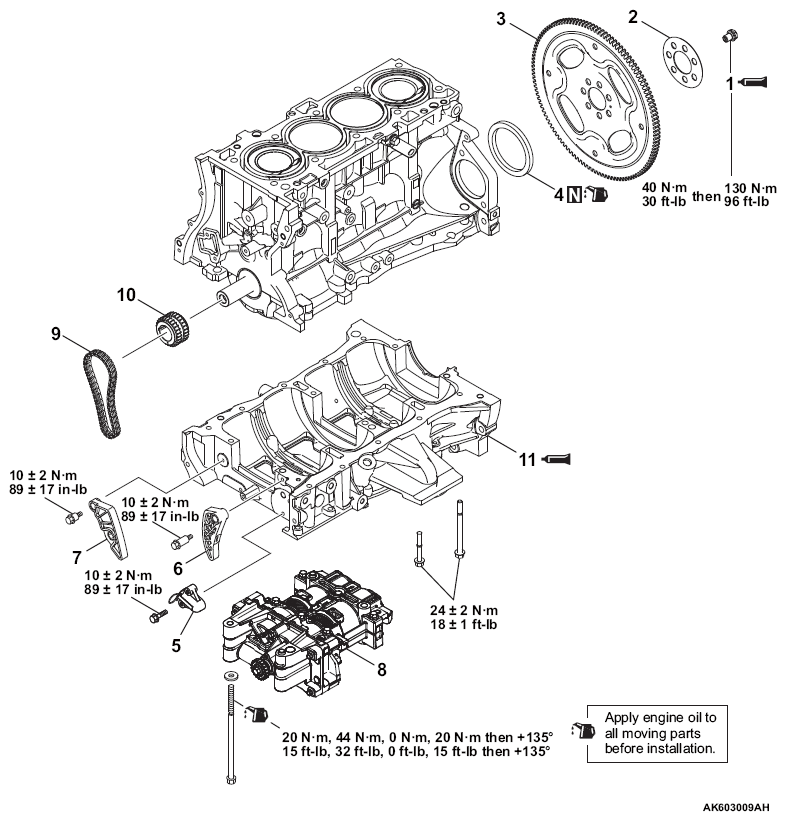

Fig 1: Removing/Installing Balancer Chain Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
<<A>>	>>E<<	1.	Drive plate bolt
		2.	Adapter plate
		3.	Drive plate
	>>D<<	4.	Rear oil seal
<<B>>	>>C<<	5.	Balancer shaft chain tensioner
		6.	Balancer shaft tensioner lever
		7.	Balancer shaft chain guide
<<B>>	>>B<<	8.	Balancer shaft module
<<B>>	>>B<<	9.	Balancer chain
<<B>>	>>B<<	10.	Crankshaft sprocket
<<C>>	>>A<<	11.	Ladder frame

Required Special Tool :
