Disassembly And Assembly: Notes

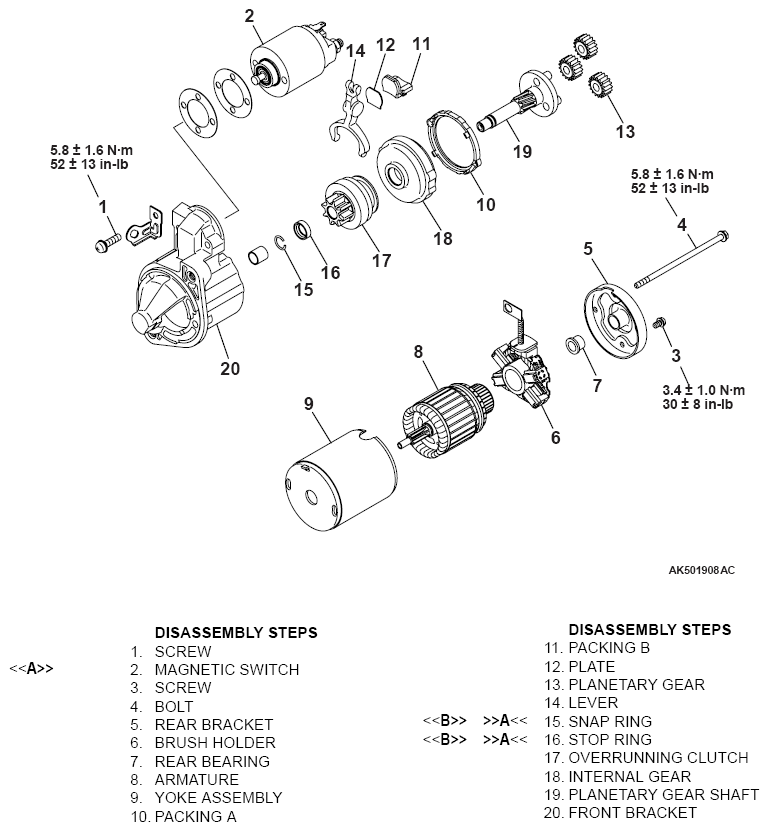

Fig 1: Disassembling/Assembling Starter Motor Assembly Components Location With Torque Specification
| disassembly steps | |||
| 1. | Screw | ||
| <<A>> | 2. | Magnetic switch | |
| 3. | Screw | ||
| 4. | Bolt | ||
| 5. | Rear bracket | ||
| 6. | Brush holder | ||
| 7. | Rear bearing | ||
| 8. | Armature | ||
| 9. | Yoke assembly | ||
| 10. | Packing A | ||
| 11. | Packing B | ||
| 12. | Plate | ||
| 13. | Planetary gear | ||
| 14. | Lever | ||
| <<B>> | >>A<< | 15. | Snap ring |
| <<B>> | >>A<< | 16. | Stop ring |
| 17. | Overrunning clutch | ||
| 18. | Internal gear | ||
| 19. | Planetary gear shaft | ||
| 20. | Front bracket | ||
