Removal And Installation: Notes

Pre-removal operation	Post-installation operation
Drive Belt Removal (Refer to CRANKSHAFT PULLEY ) <2.0L ENGINE>. Drive Belt Removal (Refer to CRANKSHAFT PULLEY ) <2.4L ENGINE>.	Drive Belt Installation (Refer to CRANKSHAFT PULLEY ) <2.0L ENGINE>. Drive Belt Installation (Refer to CRANKSHAFT PULLEY ) <2.4L ENGINE>. Drive Belt Tension Check (Refer to On-vehicle Service, DRIVE BELT TENSION CHECK ) <2.0L ENGINE>. Drive Belt Tension Check (Refer to On-vehicle Service, DRIVE BELT TENSION CHECK ) <2.4L ENGINE>.

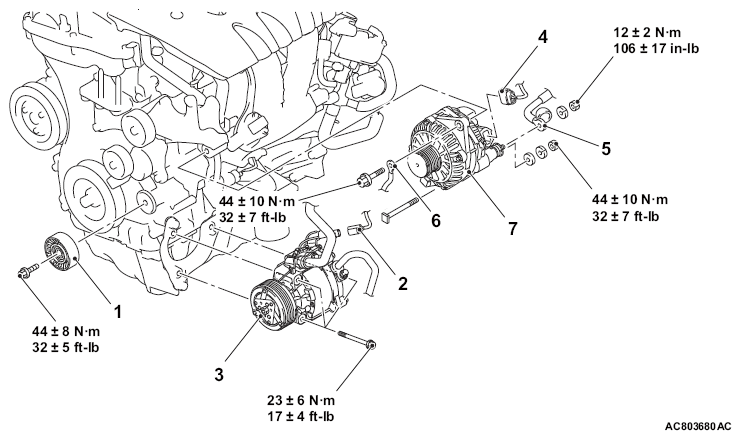

Fig 1: Removing/Installing Generator Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
		1.	Idler pulley
		2.	A/C compressor and clutch assembly connector
<<A>>	>>C<<	3.	A/C compressor and clutch assembly
		4.	Generator connector
		5.	Generator terminal
	>>B<<	6.	Grounding cable connection
<<B>>	>>A<<	7.	Generator assembly
