Disassembly And Assembly: Notes

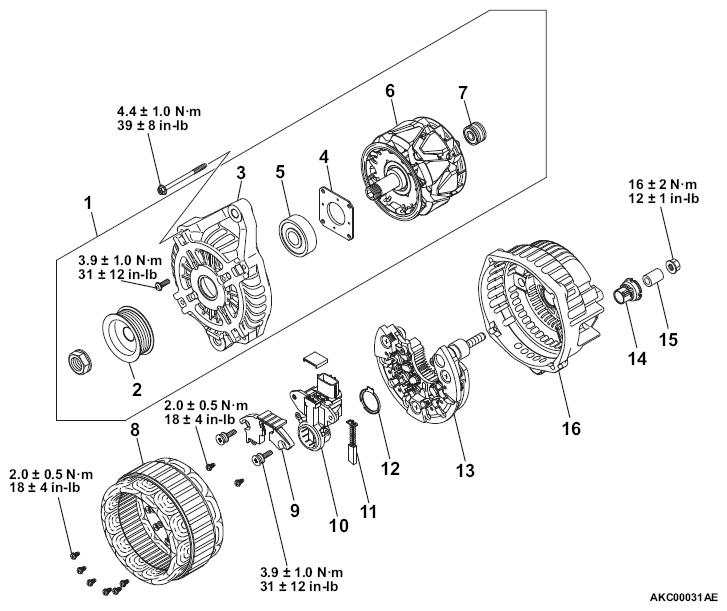

Fig 1: Disassembling/Assembling Generator Assembly Components Location With Torque Specification

G16584950

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

disassembly steps
<<A>>	>>C<<	1.	Front bracket assembly
<<B>>	>>B<<	2.	Pulley
		3.	Front bracket
		4.	Plate
		5.	Front bearing
		6.	Rotor
		7.	Rear bearing
<<C>>		8.	Stator
		9.	Condenser assembly
<<C>>	>>A<<	10.	Regulator assembly
		11.	Brush
		12.	Rubber packing
		13.	Rectifier
		14.	Insulator
		15.	Bushing
		16.	Rear bracket
