Removal And Installation: Notes
CAUTION:
Whenever you removal the windshield, calibrate its sensor (Refer to
FCM/LDW/AHB-ECU - On Vehicle Service, FCM/LDW/AHB-ECU SENSOR CALIBRATION
). <Vehicles with FCM/LDW/AHB>
Pre-removal and post-installation operation
- Front deck garnish removal and installation (Refer to WINDSHIELD WIPER .)
- Front pillar trim removal and installation (Refer to INTERIOR TRIM .)
- Inside rear view mirror removal and installation (Refer to INSIDE REAR VIEW MIRROR )
- Lighting control sensor removal and installation (Refer to HEADLIGHT .)
- FCM/LDW/AHB-ECU Removal and Installation (Refer to FCM/LDW/AHB-ECU .) <Vehicles with FCM/LDW/AHB>
NOTE:

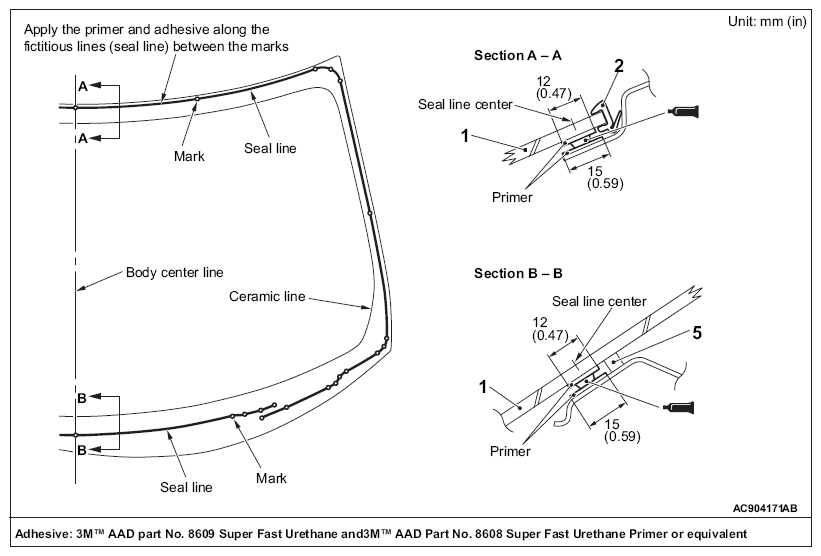

Do not apply double-sided tapes at the upper corner ends of part 2 [15 mm (0.59 in)].
| Removal steps | |||
| <<A>> | >>B<< | 1. | Windshield glass |
| >>B<< | 2. | Windshield molding | |
| >>A<< | 3. | Glass stopper | |
| >>A<< | 4. | Pin | |
| >>A<< | 5. | Windshield spacer | |
