Removal And Installation: Notes
Pre-removal and post-installation operation
- Rear wiper blade and wiper arm assembly removal and installation (Refer to REAR WIPER AND WASHER .)
- Liftgate spoiler assembly removal and installation (Refer to Liftgate Spoiler REMOVAL AND INSTALLATION .)
- Liftgate trim removal and installation (Refer to LIFTGATE TRIM .)
| Removal steps | |||
| • | Liftgate window defogger wiring harness connector connection | ||

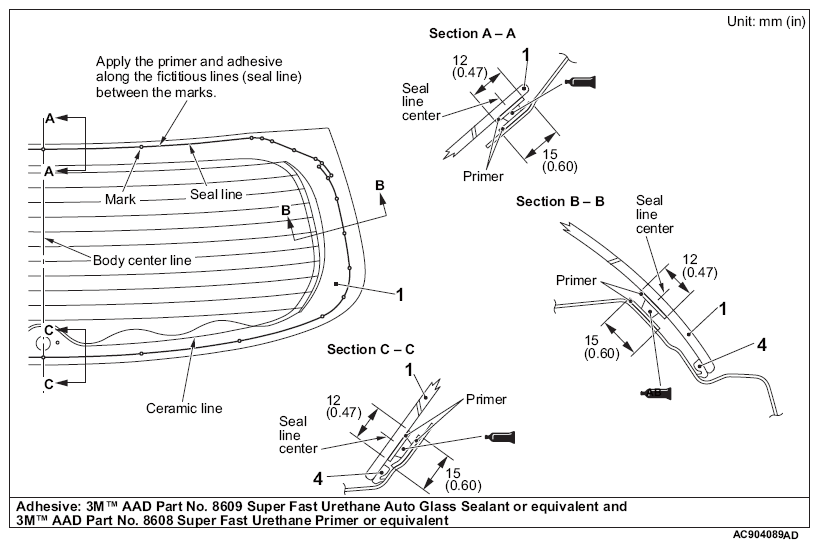

| <<A>> | >>B<< | 1. | Liftgate window glass |
| >>A<< | 2. | Fastener | |
| >>A<< | 3. | Glass stopper | |
| >>A<< | 4. | Liftgate dam | |
