Multiple Switch

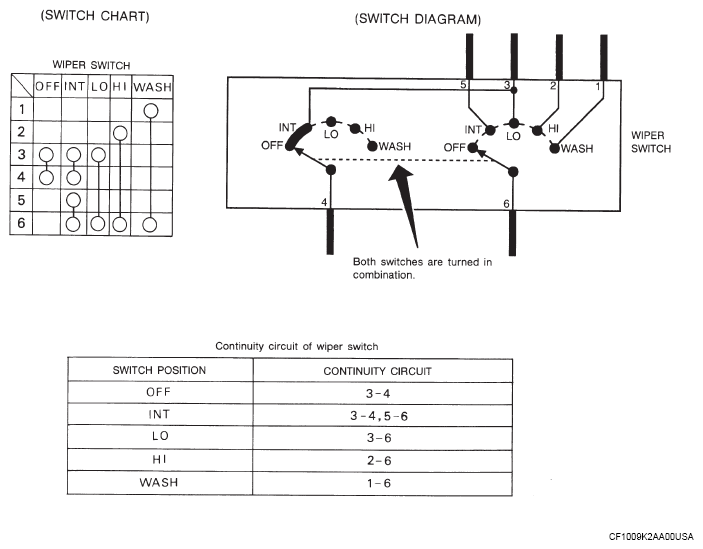

The continuity of multiple switch is described in two ways as shown below.

• The switch chart is used in schematic diagrams.
• The switch diagram is used in wiring diagrams.

Example

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
