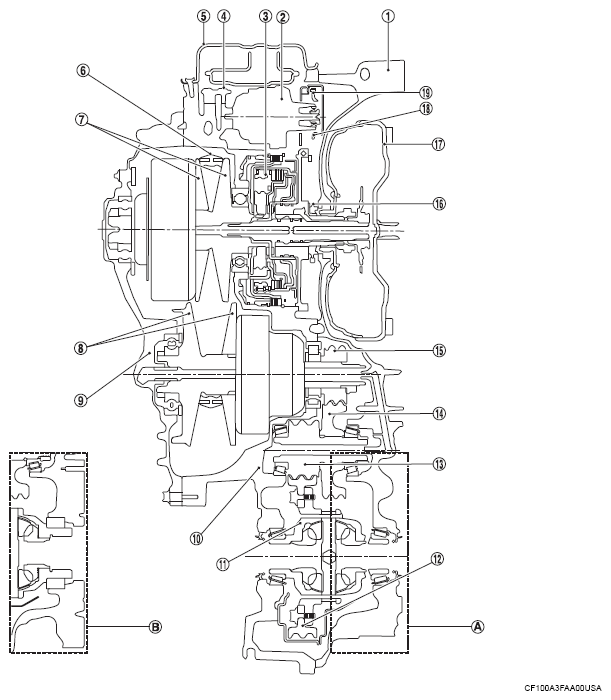

Cross-Sectional View
| (1) | Converter housing |
| (2) | Oil pump |
| (3) | Planetary gear |
| (4) | Control valve |
| (5) | Oil pan |
| (6) | Steel belt |
| (7) | Planetary pulley |
| (8) | Secondary pulley |
| (9) | Side cover |
| (10) | Transaxle case |
| (11) | Differential case |
| (12) | Final gear |
| (13) | Reduction gear |
| (14) | Idler gear |
| (15) | Output gear |
| (16) | Drive sprocket |
| (17) | Torque converter |
| (18) | Driven sprocket |
| (19) | Oil pump chain |
| (A) | FWD models |
| (B) | AWD models |
