Exploded View

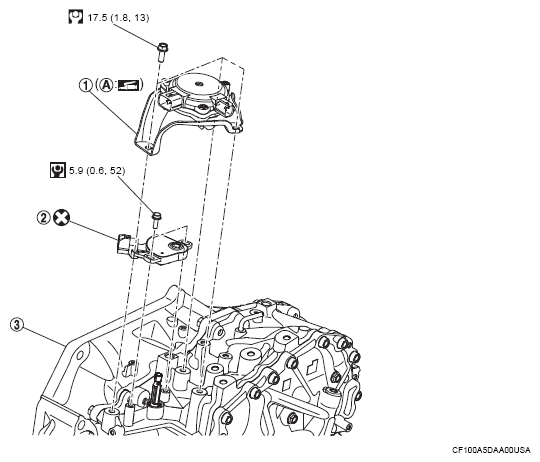

Fig 1: Removing/Installing Transmission Range Switch Components Location With Torque Specification
G16071453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Shift actuator
(2) Transmission range switch
(3) Transaxle assembly
(A) Spline part
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
: Apply lithium-based grease including molybdenum disulphide
