Exploded View

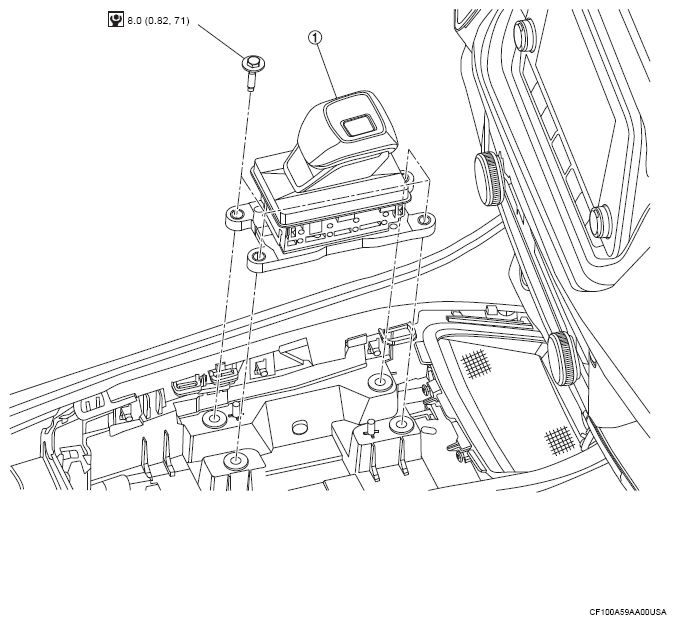

Fig 1: Removing/Installing Electric Shift Selector Components Location With Torque Specification
G16071449Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Electric shift selector assembly
: N.m (kg-m, in-lb)
