Exploded View

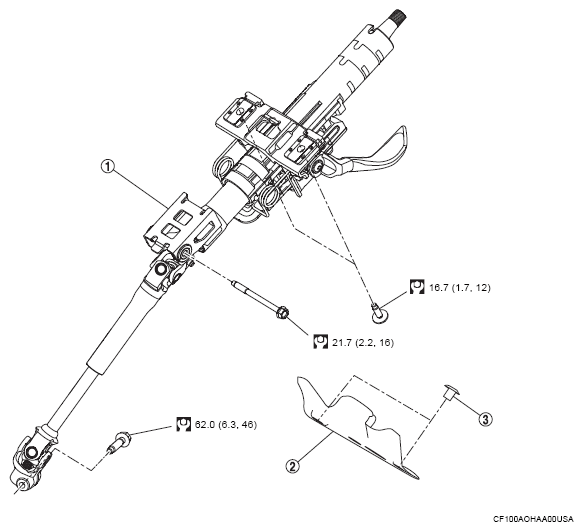

Fig 1: Removing/Installing Steering Column Components Location With Torque Specification
G16071200Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Steering column assembly
(2) Steering shaft lower cover
(3) Clip
: N.m (kg-m, ft-lb)
