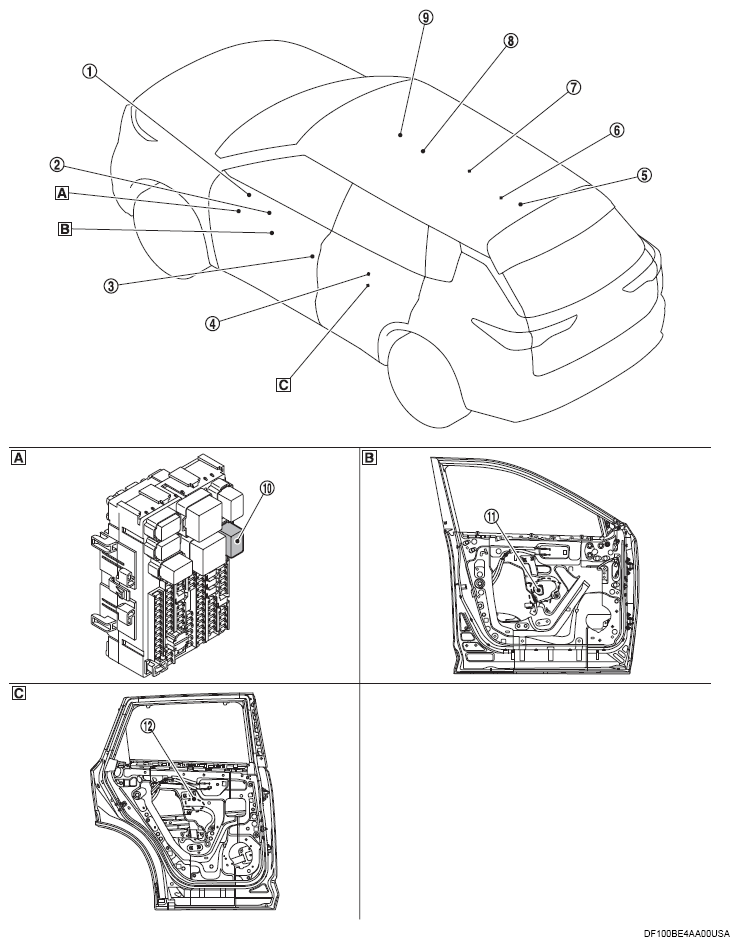

Component Parts Location
| (1) | BCM Refer to COMPONENT PARTS LOCATION . |
| (2) | Power window main switch |
| (3) | Front door lock assembly (driver side) (door switch) |
| (4) | Rear power window switch LH |
| (5) | Rear power window motor RH |
| (6) | Rear power window switch RH |
| (7) | Front door lock assembly (passenger side) (door switch) |
| (8) | Front power window motor (passenger side) |
| (9) | Front power window switch (passenger side) |
| (10) | Power window relay |
| (11) | Front power window motor (driver side) |
| (12) | Rear power window motor LH |
| (A) | Fuse block (J/B) |
| (B) | View with front door finisher removed |
| (C) | View with rear door finisher removed |
