Menu Displayed by Pressing Each Switch

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

Switch Name and Function

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

No.	Switch name	Description
(1)	Steering switch	In the [Settings] menu, select the [Driver Assistance] key Select the [Lane] submenu A tick mark next to [Prevention (LDP)] indicates that the system is turned ON Push the Drive Assist switch

SYSTEM DISPLAY

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

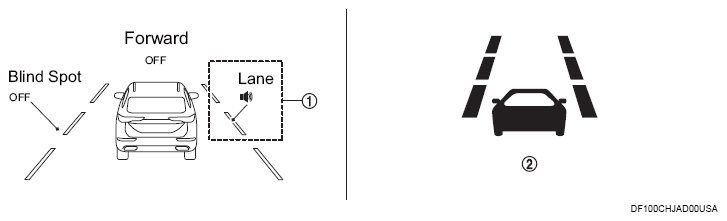

No.	Switch name	Description
(1)	LDP system indicator	Indicates that LDP system is ON
(2)	LDW indicator	Blinks when LDP system operates Indicates that an abnormal condition is present in LDP system

DISPLAY AND WARNING

System Display

When the MI PILOT Assist switch is pressed while the engine is running, the LDP system operates.

Condition				Action	Display on information display	Steering vibration
LDP OFF				-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	OFF
LDP ON	Vehicle speed is less than approx. 60 km/h (37 MPH)			-	LDP system indicator: White Speaker icon: White Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	OFF
	Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker	Turn signal is OFF or ON (Opposite to the deviate side)	Yawing control is ON	Yellow (Blink) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ON
			Turn signal is OFF or ON (Opposite to the deviate side)	Yawing control is ON	LDP system indicator: Yellow (Blink) Speaker icon: White Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ON
			Turn signal is ON (Deviate side)	-	LDP system indicator: White Speaker icon: White Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	OFF
LDP ON	Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker with soft braking	-	Yawing control is ON	Yellow (Blink) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ON
LDP ON	Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker with soft braking	-	Yawing control is ON	LDP system indicator: Yellow (Blink) Speaker icon: White Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ON
LDP is malfunction				The LDP system is automatically canceled. NOTE: The system operates if the electric motor is turned OFF→ON after the condition improves	Yellow Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	OFF
LDP is malfunction					System fault See Owner's Manual	OFF
Front camera unit high temperature				The LDP system is automatically canceled. NOTE: The system operates if the electric motor is turned OFF→ON after the condition improves	Not Available High Cabin Temperature	OFF
When the ASC or ABS (Including the TCS) operates				The LDP system is automatically canceled. NOTE: The system operates if the electric motor switch is turned OFF→ON after the condition improves	Unavailable Slippery Road	OFF
When the ASC is turned OFF When the SNOW mode, GRAVEL mode or MUD mode is selected (AWCmodels)				The LDP system is automatically canceled. NOTE: The system operates if the electric motor switch is turned OFF→ON after the condition improves	Currently Not Available	OFF

NOTE: After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (37 MPH). Refer to SYSTEM DESCRIPTION .
