Front Transaxle: Specifications

Transaxle model		F1EKA
Construction		Parallel axis mechanical reduction gear unit
Weight kg (lb)		52.1 (114.9)
Total gear ratio	Motor - Differential	9.383
	Generator - Engine	2.476
	Engine - Differential	3.431
Fluid	Brand name	Mitsubishi motors genuine ATF SP III
Fluid	Capacity dm³ (qt)	2.47 (2.61)

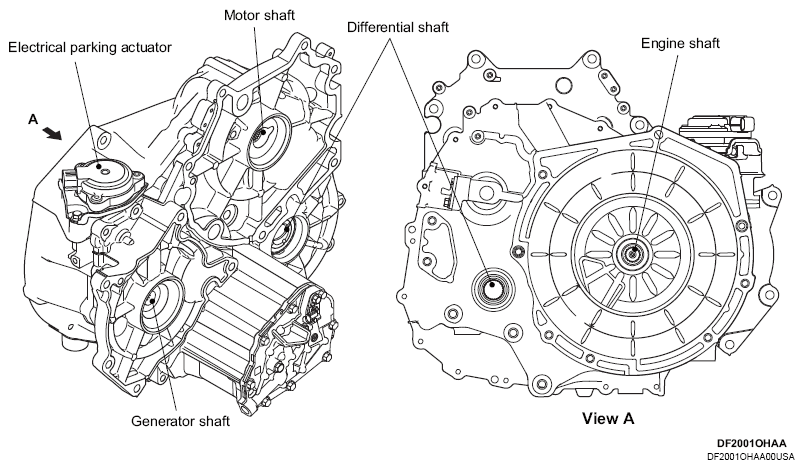

OVERVIEW

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
