Transaxle Fluid Temperature Sensor Check

Remove the engine room under cover. Refer to REMOVAL AND INSTALLATION .

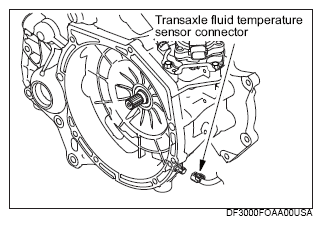

Disconnect the transaxle fluid temperature sensor connector.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

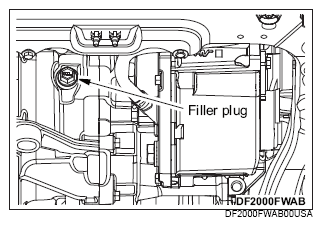

Remove the filler plug and gasket.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert a thermometer into the filler plug hole of the transaxle.
NOTE: Insert a thermometer which is made of metal or is put in a metal case [overall length: approximately 150 - 200 mm (5.9 - 7.9 inches)] into the transaxle case hole approximately 80 mm (3.1 inches).

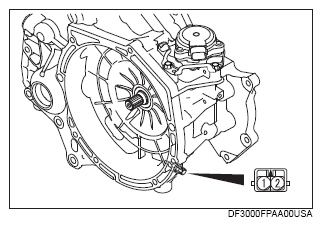

Measure the resistance between the sensor-side connector terminal No. 1 and terminal No. 2.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Standard value:

If the resistance deviates from the standard value greatly, replace the sensor.
When installing a new sensor and gasket, apply ATF to the threaded portion of the transaxle fluid temperature sensor.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten the transaxle fluid temperature sensor to the specified torque.
Tightening torque: 14 ± 1 N.m (124 ± 8 in-lb)
Install the filler plug and new gasket, and tighten to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)
Install the engine room under cover. Refer to REMOVAL AND INSTALLATION .
