Component Locations: Grounding

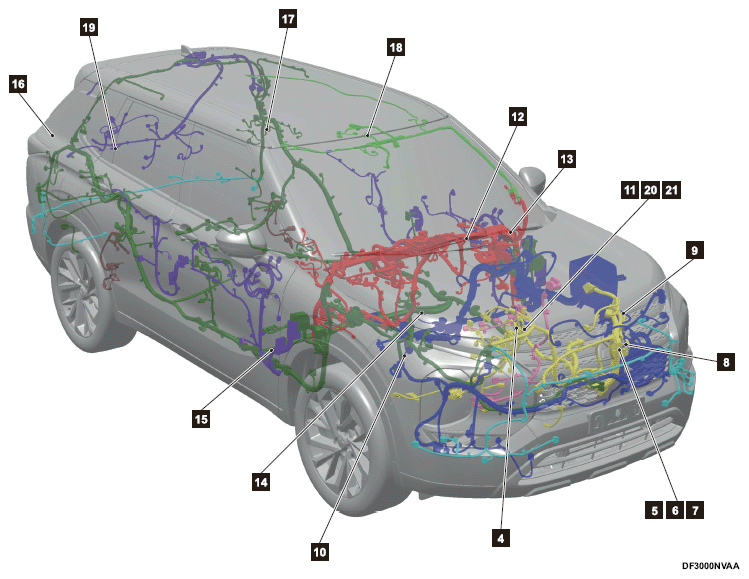

G16313973Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

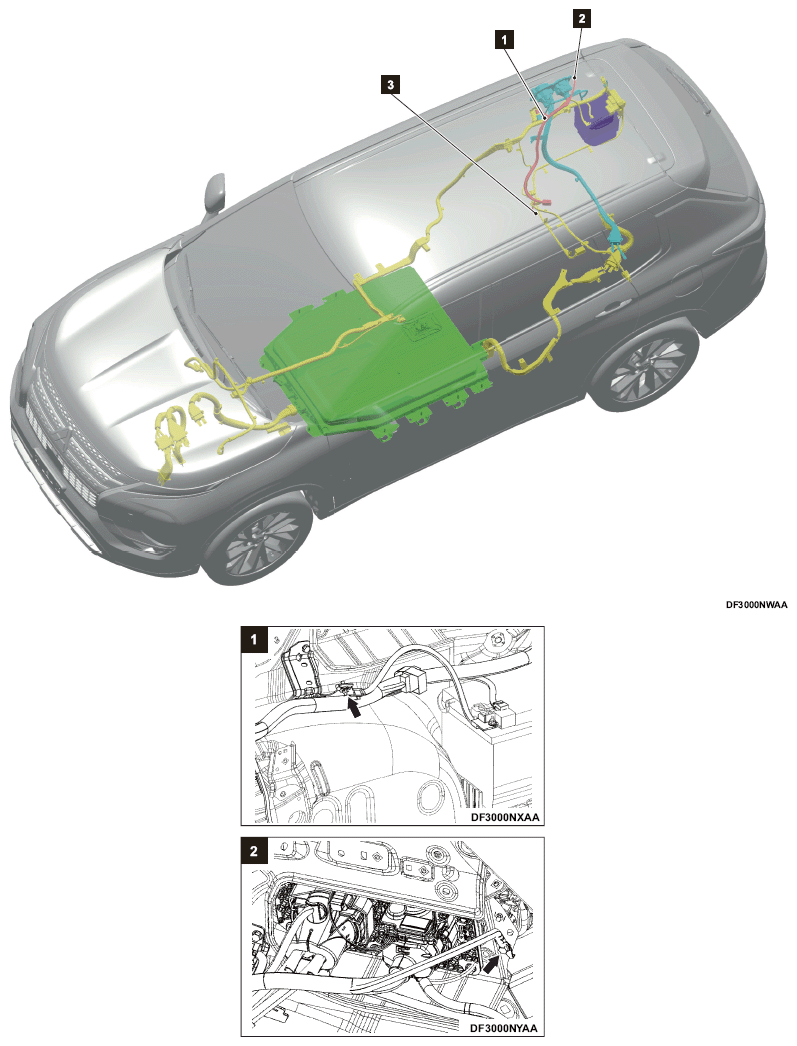

G16759057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

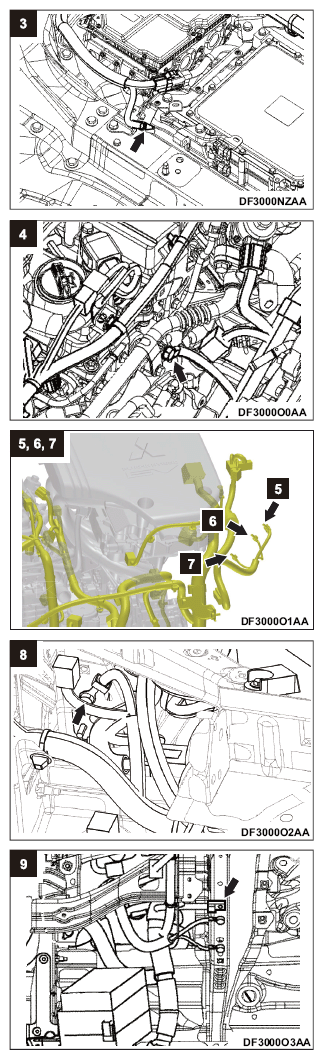

G16759058Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

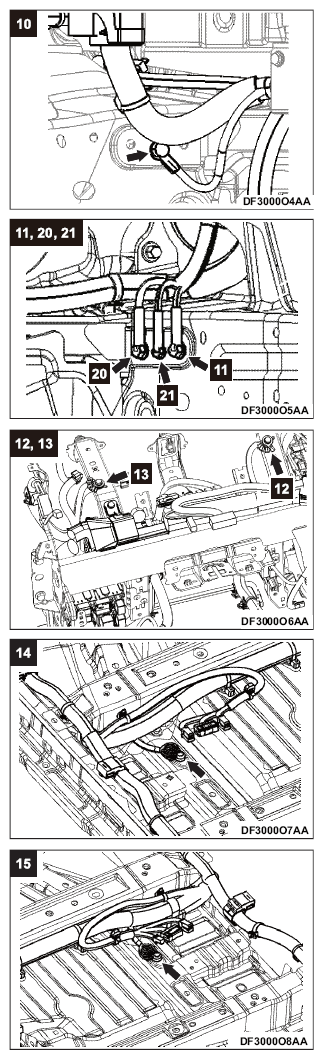

G16759059Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

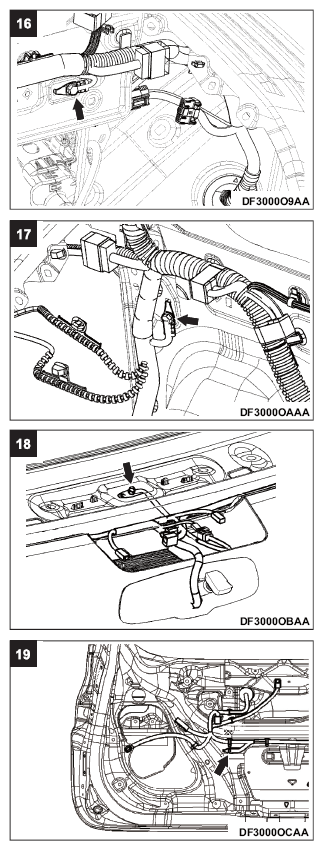

G16759060Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
