How To Connect The M.U.T.-III Se

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
MB992745: V.C.I.-Lite main harness A
MB992747: V.C.I.-Lite USB cable short
MB992748: V.C.I.-Lite USB cable long

CAUTION: To prevent damage to M.U.T.-III SE, always turn OFF the power supply mode of the electric motor switch before connecting or disconnecting M.U.T.-III SE.

Ensure that the power supply mode of the electric motor switch is OFF.
Start up the personal computer.

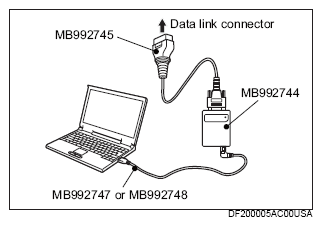

Connect special tool MB992747 or MB992748 to special tool MB992744 and the personal computer.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connect special tool MB992745 to special tool MB992744.

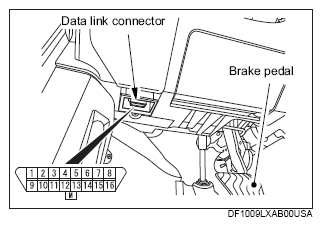

Connect special tool MB992745 to the data link connector.
NOTE: When the special tool MB992745 is connected to the data link connector, the special tool MB992744 indicator light will be illuminated in a green color.
Start the M.U.T.-III SE system on the personal computer.
NOTE: Disconnecting M.U.T.-III SE is the reverse of the connecting sequence, making sure that the power supply mode of the electric motor switch is OFF.
