Error Example

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

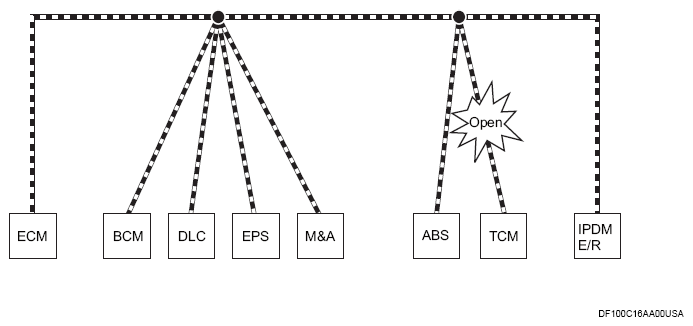

Example: TCM branch line open circuit

G16316561Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Unit name Symptom
ECM Engine torque limiting is affected, and shift harshness increases.
BCM Reverse warning chime does not sound.
EPS control unit Normal operation.
Combination meter
  • Shift position indicator and OD OFF indicator turn OFF.
  • Warning lights turn ON.
ABS actuator and electric unit (control unit) Normal operation.
TCM No impact on operation.
IPDM E/R Normal operation.

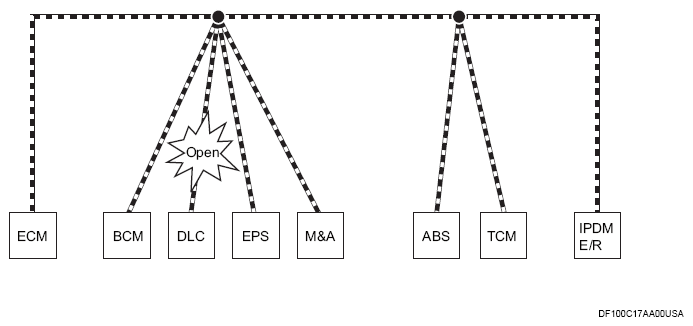

Example: Data link connector branch line open circuit

G16316562Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Unit name Symptom
ECM Normal operation.
BCM
EPS control unit
Combination meter
ABS actuator and electric unit (control unit)
TCM
IPDM E/R
NOTE:
  • When data link connector branch line is open, transmission and reception of CAN communication signals are not affected. Therefore, no symptoms occur. However, be sure to repair malfunctioning circuit.
  • The model (all units on CAN communication system are Diag on CAN) cannot perform CAN diagnosis with M.U.T.-III SE if the following error occurs. The error is judged by the symptom.
Error Difference of symptom
Data link connector branch line open circuit Normal operation.
CAN-H, CAN-L harness short-circuit Most of the units which are connected to the CAN communication system enter fail-safe mode or are deactivated.

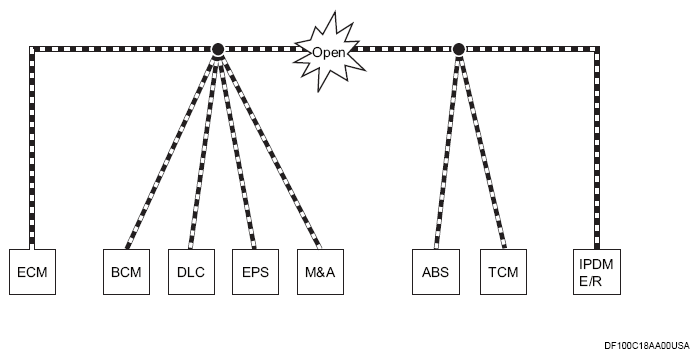

Example: Main Line Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Open Circuit

G16316563Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Unit name Symptom
ECM Engine torque limiting is affected, and shift harshness increases.
BCM
  • Reverse warning chime does not sound.
  • The front wiper moves under continuous operation mode even though the front wiper switch being in the intermittent position.
EPS control unit The steering effort increases.
Combination meter
  • The shift position indicator and OD OFF indicator turn OFF.
  • The speedometer is inoperative.
  • The odo/trip meter stops.
ABS actuator and electric unit (control unit) Normal operation.
TCM No impact on operation.
IPDM E/R When the electric motor switch is ON,
  • The headlights (Lo) turn ON.
  • The cooling fan continues to rotate.

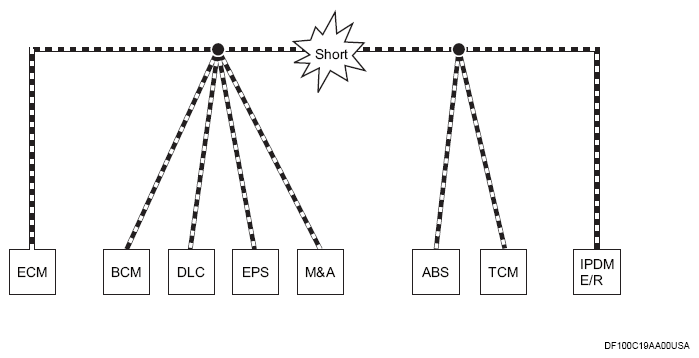

Example: CAN-H, CAN-L Harness Short Circuit

G16316564Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Unit name Symptom
ECM
  • Engine torque limiting is affected, and shift harshness increases.
  • Engine speed drops.
BCM
  • Reverse warning chime does not sound.
  • The front wiper moves under continuous operation mode even though the front wiper switch being in the intermittent position.
  • The room light does not turn ON.
  • The engine does not start (if an error or malfunction occurs while turning the electric motor switch OFF.)
  • The steering lock does not release (if an error or malfunction occurs while turning the electric motor switch OFF.)
EPS control unit The steering effort increases.
Combination meter
  • The tachometer and the speedometer do not move.
  • Warning lights turn ON.
  • Indicator lights do not turn ON.
ABS actuator and electric unit (control unit) Normal operation.
TCM No impact on operation.
IPDM E/R When the electric motor switch is ON,
  • The headlights (Lo) turn ON.
  • The cooling fan continues to rotate.
