Component Parts Location

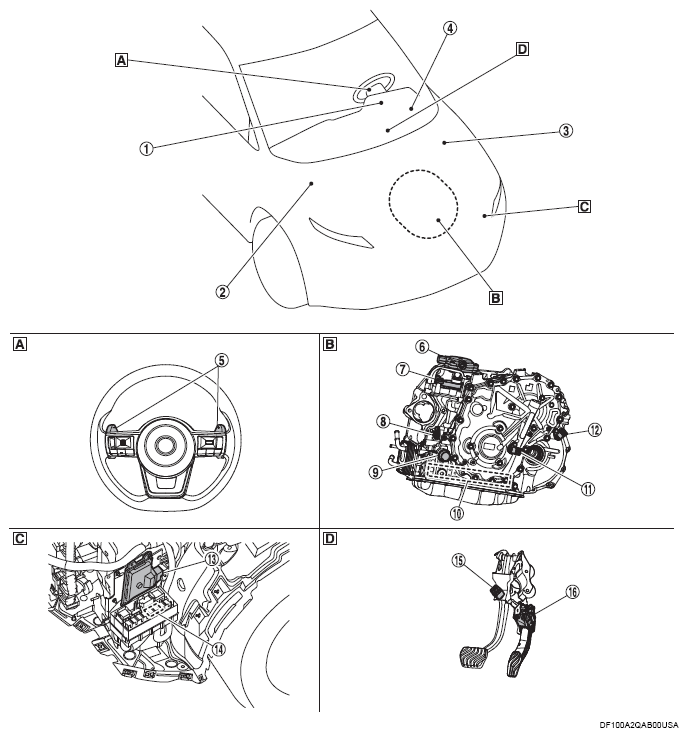

| (1) | Combination meter Refer to REMOVAL AND INSTALLATION . |
| (2) | ABS actuator and electronic unit (control unit) Refer to COMPONENT PARTS LOCATION . |
| (3) | ECM Refer to COMPONENT PARTS LOCATION . |
| (4) | BCM Refer to COMPONENT PARTS LOCATION . |
| (5) | Paddle shifter |
| (6) | Electric shift actuator |
| (7) | Transmission range switch |
| (8) | Input speed sensor |
| (9) | CVT unit connector |
| (10) | Control value |
| (11) | Primary speed sensor |
| (12) | Output speed sensor |
| (13) | TCM |
| (14) | Shift actuator relays (A and B) |
| (15) | Stop light switch |
| (16) | Accelerator pedal position switch |
| (A) | Steering wheel |
| (B) | Side of transaxle assembly |
| (C) | Left front of vehicle |
| (D) | Brake pedal periphery |

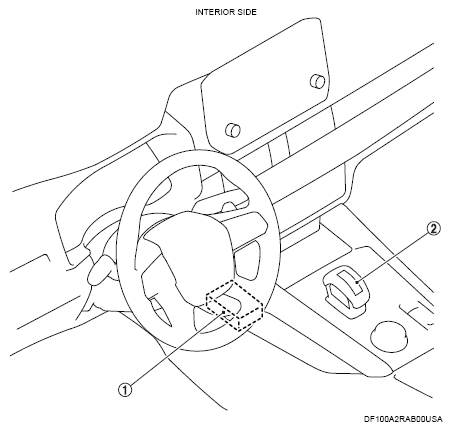

| (1) | Electric shift control module |
| (2) | Electric shift selector |
