Exploded View

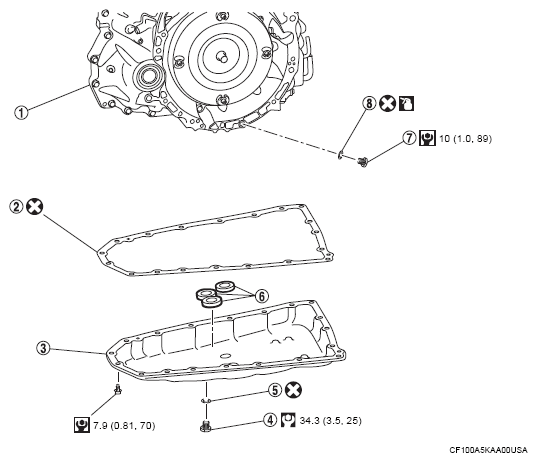

Fig 1: Removing/Installing Oil Pan Components Location With Torque Specification
G16071462Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Transaxle assembly
(2) Oil pan gasket
(3) Oil pan
(4) Drain plug
(5) Drain plug gasket
(6) Magnet
(7) Overflow plug
(8) O-ring
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
: Apply CVT fluid.
