Exploded View: Removal

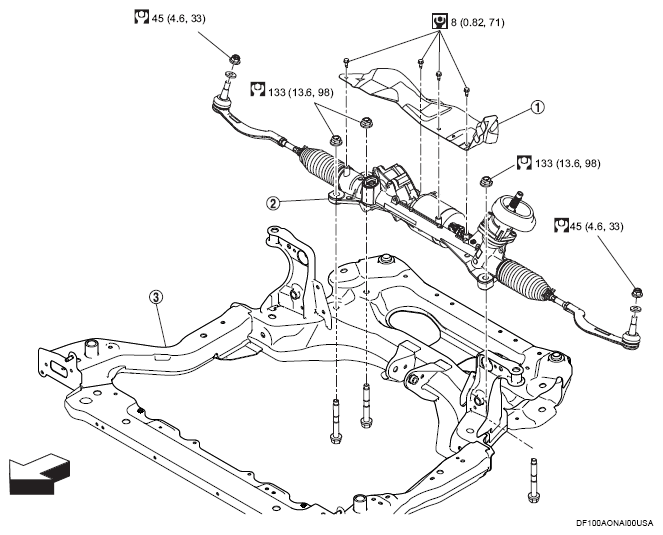

Fig 1: Removing/Installing Steering Gear And Linkage Components Location With Torque Specification
G16071206Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Heat insulator
(2) Steering gear assembly
(3) Front suspension member
(4) : Vehicle front
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
