Exploded View

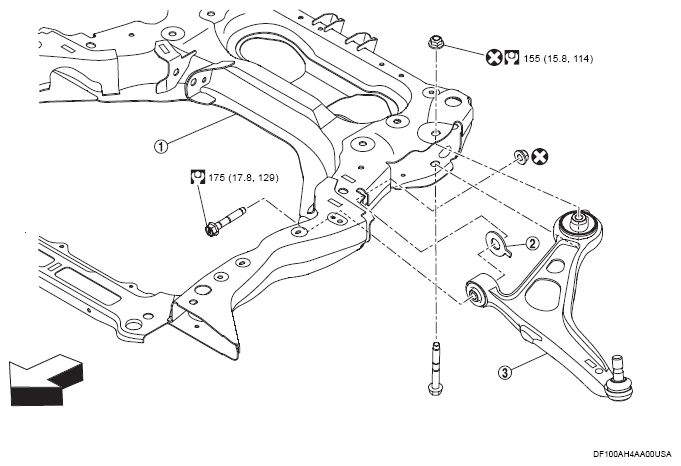

Fig 1: Removing/Installing Transverse Link Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Front suspension member
(2)	Bush
(3)	Transverse link
	: Vehicle front
	: N.m (kg-m, ft-lb)
	: Always replace after every disassembly .
