Exploded View

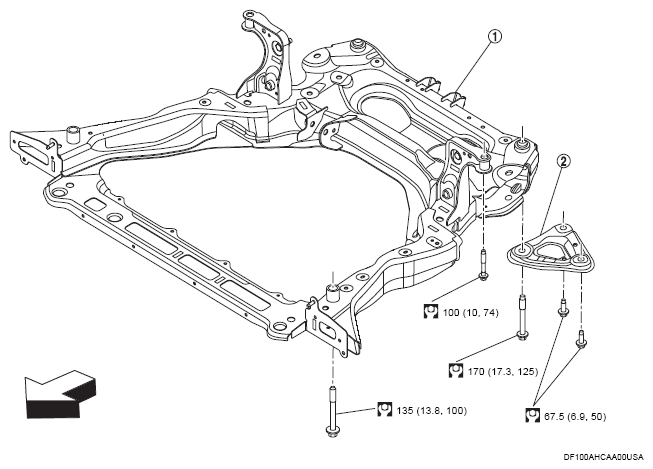

Fig 1: Removing/Installing Front Suspension Member Components Location With Torque Specification
G16071249Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Front suspension member
(2) Member stay
: Vehicle front
: N.m (kg-m, ft-lb)
