Exploded View

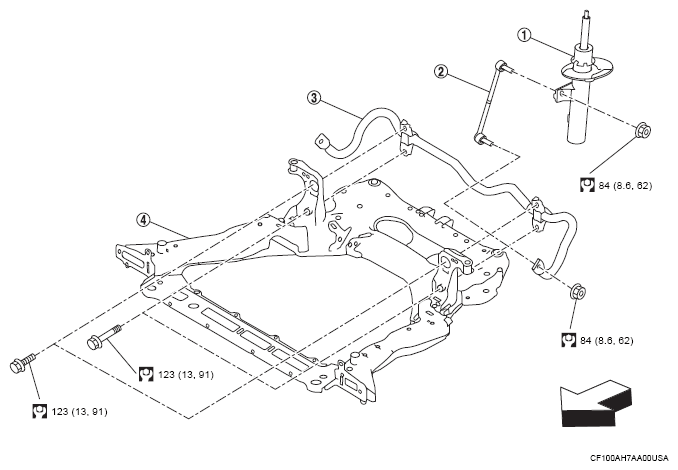

Fig 1: Removing/Installing Front Stabilizer Components Location With Torque Specification
G16071244Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Strut
(2) Stabilizer connecting rod
(3) Stabilizer bar
(4) Front suspension member
: Vehicle front
: N.m (kg-m, ft-lb)
