Exploded View

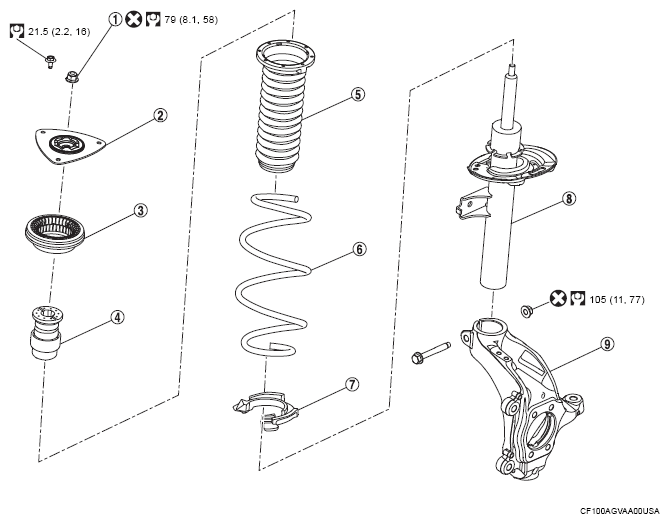

Fig 1: Removing/Installing Front Coil Spring And Strut Components Location With Torque Specification
| (1) | Piston rod lock nut |
| (2) | Mounting insulator |
| (3) | Mounting bearing |
| (4) | Bound bumper |
| (5) | Upper rubber seat |
| (6) | Coil spring |
| (7) | Lower rubber seat |
| (8) | Strut |
| (9) | Steering knuckle |
| : N.m (kg-m, ft-lb) | |
| : Always replace after every disassembly . |
