Operation Procedure

  1. Turn ignition switch ON and wait 20 seconds.

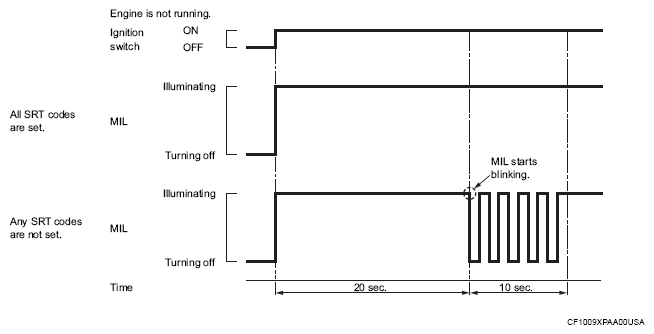

  2. SRT status is indicated as shown blow.
    • ECM continues to illuminate MIL if all SRT codes are set.
    • ECM blinks MIL for about 10 seconds if all SRT codes are not set.
G16071107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
