Disassembly And Assembly
CAUTION:
Before disassembly and assembly of the instrument panel, refer to PRECAUTION FOR SUPPLEMENTAL RESTRAINT SYSTEM (SRS) "AIR BAG" AND "SEAT BELT PRE-TENSIONER"
and REMOVAL AND INSTALLATION
.
Pre-removal and Post-installation Operation
Passenger Air Bag Module Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

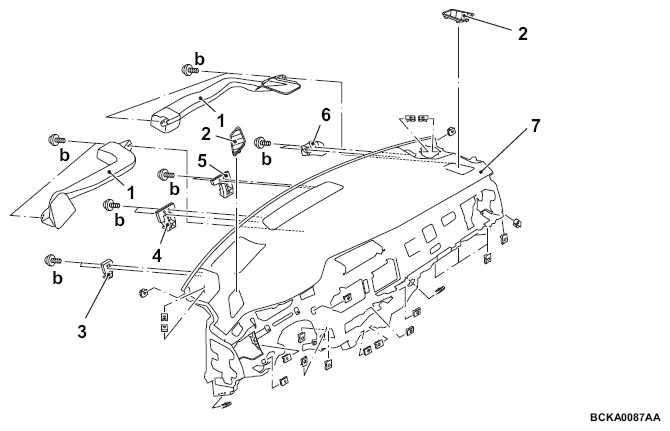

| Disassembly steps | |
|---|---|
| 1. | Side defroster duct |
| 2. | Side defroster grille |
| 3. | Instrument panel support bracket A |
| 4. | Instrument panel support bracket B |
| 5. | Instrument panel support bracket C |
| 6. | Instrument panel support bracket D |
| 7. | Instrument panel |
