Disassembly And Assembly: Notes

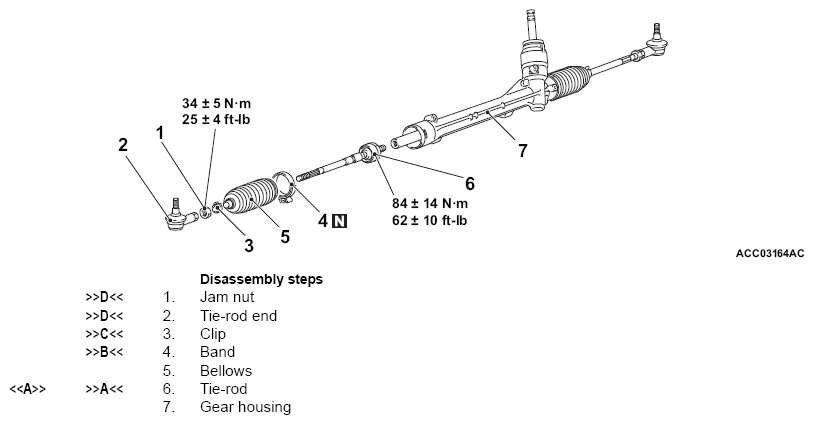

Fig 1: Disassembling/Assembling Power Steering Gear Box And Linkage Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB992249: Variable Spanner
• MB992209: Bellows Band Clipping Tool
• MB992208: Bellows Band Clipping Tool
