Removal And Installation

Post-installation Operation

• Learning Procedures of Power Window Fully Closed Position <Vehicles with safety system (driver's side door)> (Refer to LEARNING PROCEDURES OF POWER WINDOW FULLY CLOSED POSITION <VEHICLES WITH SAFETY SYSTEM (DRIVER'S SIDE)>).

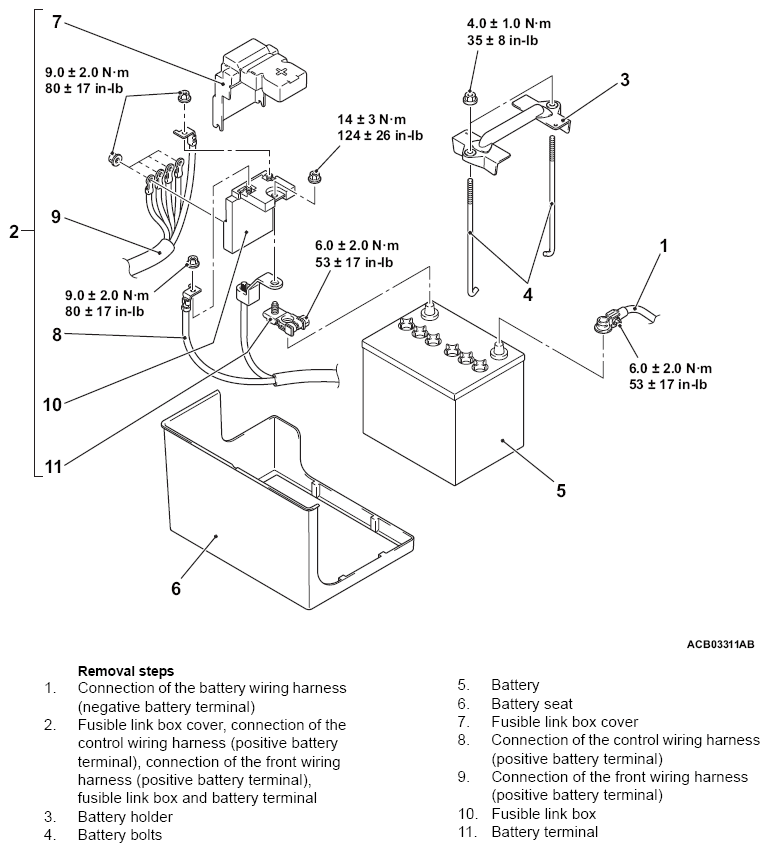

Fig 1: Removing/Installing Battery Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
