Home >> Mitsubishi >> 2023 >> Outlander Sport LE >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul (2.0L Engine) >> Balancer Chain >> Removal And Installation >> Notes

Removal And Installation: Notes

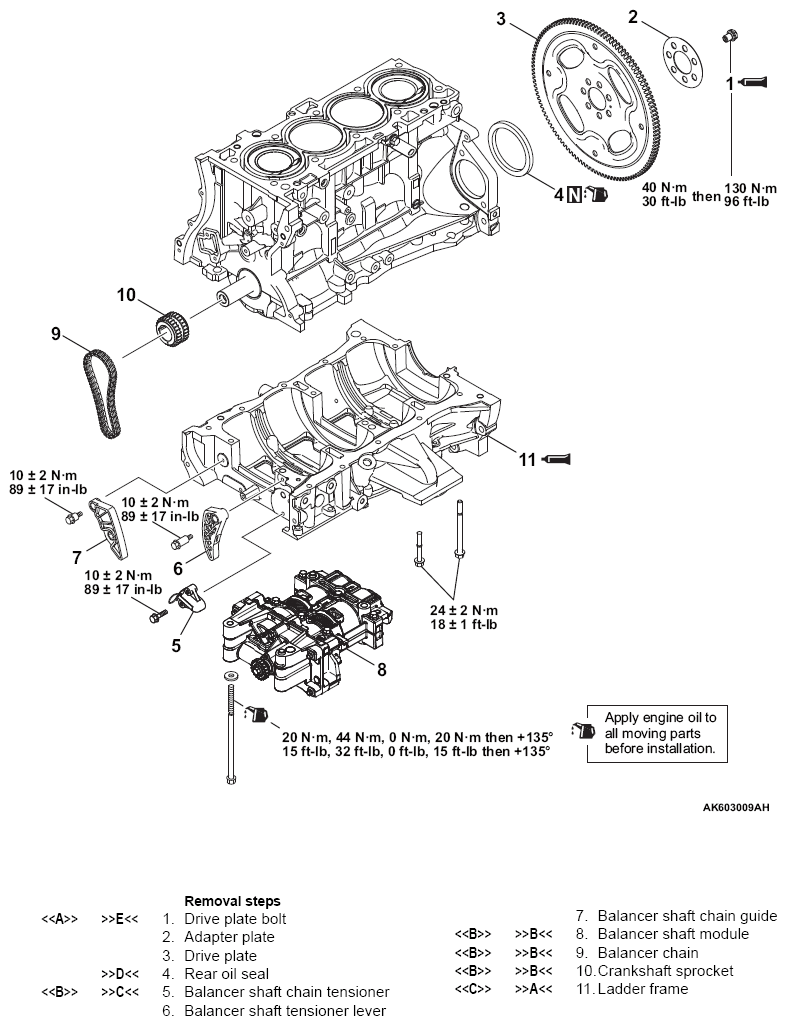

Fig 1: Removing/Installing Balancer Chain Components Location With Torque Specification
G16257915Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
