Notes
Removal And Installation: Notes
Pre-removal operation
Air Cleaner Intake Duct and Air Intake Hose Removal (Refer to
AIR CLEANER
).
Battery and Battery Tray Removal (Refer to, Battery
REMOVAL AND INSTALLATION
).
Engine Room Under Cover Front A, B Removal (Refer to, Under Cover
REMOVAL AND INSTALLATION
).
Post-installation operation
Engine Room Under Cover Front A, B Installation (Refer to, Under Cover
REMOVAL AND INSTALLATION
).
Battery and Battery Tray Installation (Refer to, Battery
REMOVAL AND INSTALLATION
).
Air Cleaner Intake Duct and Air Intake Hose Installation (Refer to,
AIR CLEANER
).

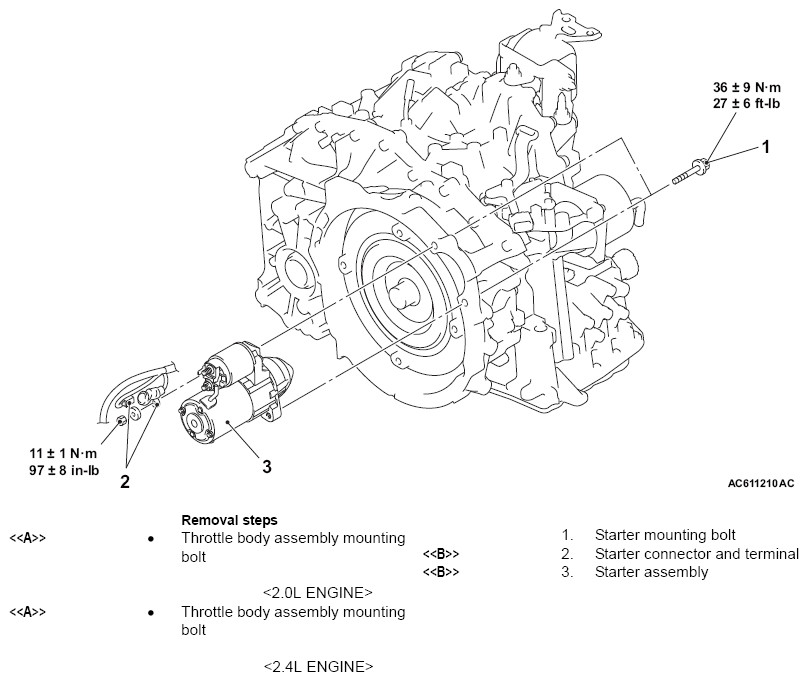

Fig 1: Removing/Installing Starter Motor Assembly Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
