Home
>>
Mitsubishi
>>
2023
>>
Outlander Sport LE
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Starter Motor Assembly
>>
Disassembly And Assembly
>>
Notes
Disassembly And Assembly: Notes

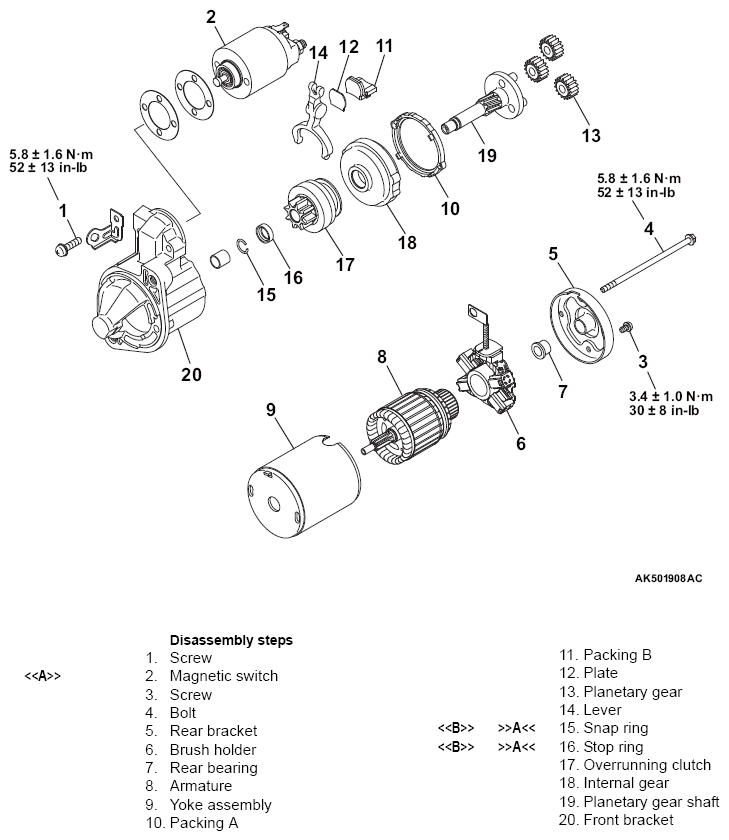

Fig 1: Disassembling/Assembling Starter Motor Assembly Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
