Component Function Within System
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

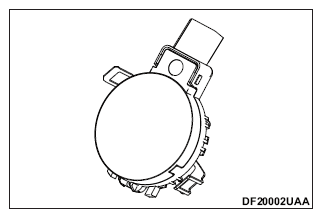

- The light & rain sensor detects the outside ambient light level, forward light level and sensor conditions.
- Based on ambient light level (day/night detection), forward light level (tunnel detection) and sensor conditions it judges ON/OFF condition for exterior lights.
- And it transmits exterior light ON/OFF request to the BCM by the LIN communication line.
- BCM controls each function depending on the signals. And it detects the LIN communication line error and the light & rain sensor malfunction.
