Visual Inspection

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

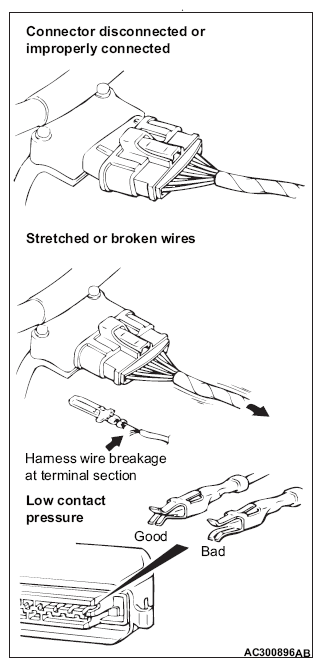

Connector is disconnected or improperly connected

• Connector pins are pulled out
• Due to harness tension at terminal section
• Low contact pressure between male and female terminals
• Low connection pressure due to rusted terminals or foreign matter lodged in terminals
