| 1 |

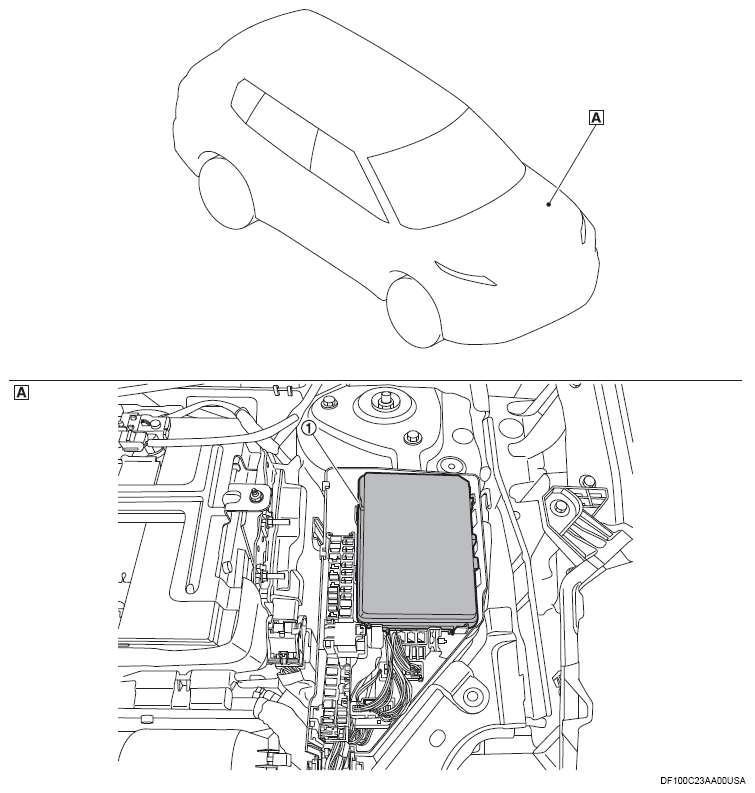

IPDM E/R Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 2 |
Combination switch (Lighting & turn signal switch) |
| 3 |
BCM Refer to COMPONENT PARTS LOCATION
for detailed installation location. |
| 4 |
Stop light switch |
| 5 |
Front power window motor LH |
| 6 |
Door lock assembly (Door switch) |
| 7 |
Back door opener switch (Back door request switch) |
| 8 |
Back door lock assembly (Back door switch) |
| 9 |
Rear door outside handle assembly (Door request switch) |
| 10 |
Front door outside handle assembly (Door request switch) |
| 11 |
Push-button electric motor switch |
| 12 |
Keyless operation key unit Refer to COMPONENT PARTS LOCATION
for detailed installation location. |
| 13 |
TCU Refer to COMPONENT PARTS LOCATION
for detailed installation location. |
| 14 |
ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION
for detailed installation location. |
| 15 |
Ignition relay-3 |
| 16 |
Ignition relay-2 |
| 17 |
Ignition relay-1 |
| 18 |
Accessory relay |
| A |
Relay holder |
| B |
Fuse block (J/B) |
| |
|
 |
Vehicle front |
| |
|
| |
|
