Front Power Window Switch (Passenger side)
>>
Component Operation
Component Operation

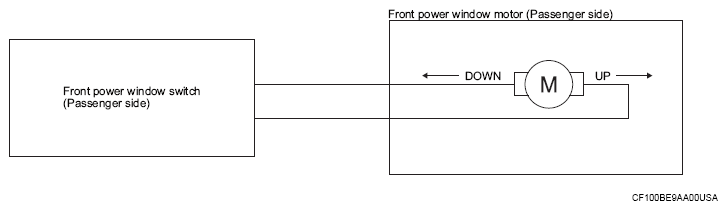

When front power window switch (passenger side) is operated, it transmits signal to front power window motor (passenger side).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

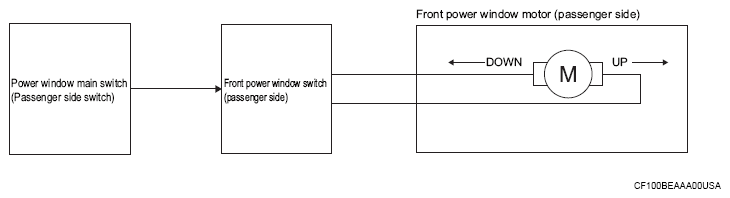

Transmits the operation signal from power window main switch (passenger side switch) to front power window motor (passenger side).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
